Tomato Paste Concentrator

Tomato paste concentrator is used for the concentration of Chinese traditional medicine, western medicine, starch sugar food and dairy, especially suitable for the low-temperature vacuum concentration of thermal and sensitive material.

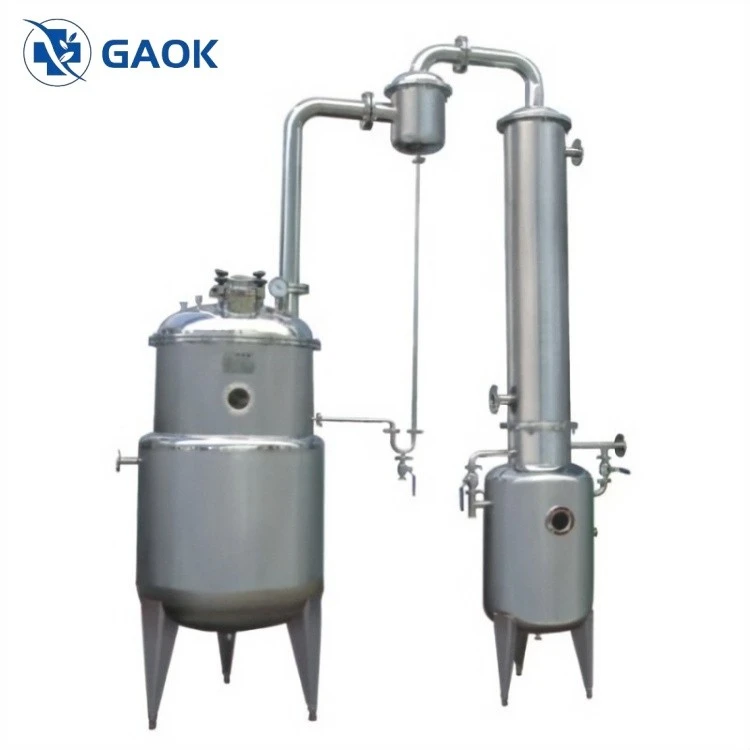

1. The Tomato paste concentrator consists of heating chamber, separator, steam separator, condenser, cooler, liquid storage barrel, circulating pipe and other components. The whole kit is made of high-quality stainless steel.

2. The inner part of the heating chamber is column tube type. After the shell is connected to the steam, the liquid inside the column tube is heated. The chamber is equipped with pressure gauges and safety valves to ensure production safety.

3. The front separation chamber is provided with a visual lens to observe the process of liquid evaporation. The rear hole is convenient to clean when changing the breed. Tomato paste concentrator has a thermometer and a vacuum meter that can observe and master the liquid temperature and the vacuum degree in the evaporating chamber.

• Alcohol recovery: With a large recycling capacity, the tomato paste concentrator adopts vacuum concentration process. It has the characteristics of small investment and high recovery efficiency.
• Concentration: This tomato paste concentrator adopts the outside heating natural cycle and vacuum negative pressure evaporation for fast evaporation. The concentration ratio can be up to 1.2. The liquid in a state of full seal without the foam concentration. The concentrated liquid from the equipment features no pollution and easy cleaning. The equipment is easy to operate and covers a small area. The heater and evaporator consist of insulation layer, mirror polishing inner face and stainless steel surface.
