Products Description

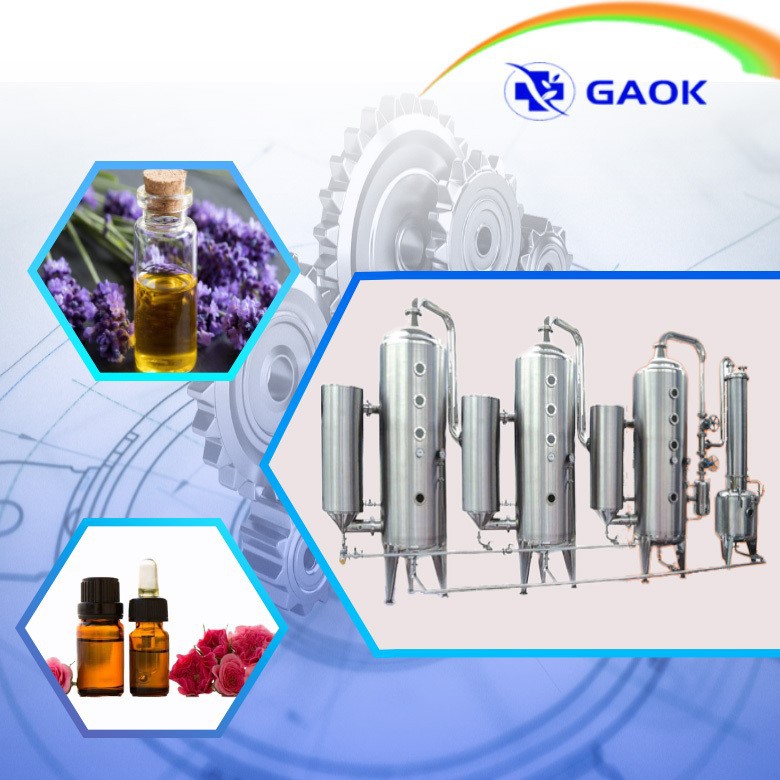

Single and Multiple Effect Evaporator: Advanced Concentration Solutions for Industry

In the field of industrial evaporation, efficiency and reliability are of utmost importance. Single and Multiple Effect Evaporator is specifically designed for high-demand concentration processes and is particularly suitable for handling heat-sensitive products. Through precise temperature control and innovative heat energy recovery systems, we achieve energy conservation and cost reduction while maintaining product quality.

The equipment operates based on the principle of vacuum phase separation, significantly lowering the boiling point of materials and enabling gentle evaporation. We offer two types of configurations:
1.Single-effect evaporator - Simple in structure, suitable for pilot-scale, small-batch, or multi-product production, with flexible investment.
2.Multi-effect evaporator - Through multi-stage heat energy reuse, suitable for large-scale continuous production, with steam consumption reduced by approximately 50%-70% and significant optimization of operating costs.

PRODUCTS SPECIFICATION

Profile type	Vacuum evaporator concentrator
Material	SS304 or SS316L
Capacity	0.1T/H-5T/H (Customized)
Heater type	Electric heating / Steam heating
The Working Temperature	40°C~80°C
The Working Pressure	-0.08Mpa
Power	0.55KW-30KW
PARTS DETAILS	1.Quick open manhole / Pressure manhole
	2.Various types of CIP cleaners
	3.Sterile respirator
	4.Adjustable Legs
	5.Inlet and Outlet sanitary valve
	6.Thermometer (According to customer requirements )
	7.Scraped wall mixer .(According to customer requirements)
	8.Liquid level meter and lever controller (According to customer requiremen

How Materials Are Processed by Single and Multiple Effect Evaporator

1.Thermal protection: Suitable for juices, pharmaceutical extracts, protein solutions, etc. Vacuum low-temperature evaporation, preserving activity, flavor and color.
2.High viscosity treatment: Can handle high-viscosity materials such as syrups, polymers, and high-concentration waste liquids. Anti-scaling design ensures stable heat transfer.
3.Energy-saving operation: The multi-effect system utilizes thermal energy for recycling, reducing steam consumption by up to 70% compared to a single-effect system, saving operating costs.
4.Crystallization control: Precisely regulate supersaturation to achieve uniform crystallization, facilitating solid-liquid separation and enhancing product purity.

FAQS

Q: 1.How to proceed an order ?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

Q: 2.Do you offer guarantee for the products?

A: We offer 1years warranty to our products.

Q: 3.How long is your date of delivery?

A: If the goods are in stock,it is within 7 days. However, it will be 15 days. Also it is depending on the quantity.

Q: 4.How to solve the equipment trouble during the using?

A: Please send us email of the problem, pictures or a small video, we will find the problem and help you to solve it.
