Products Description
Milk tank cooling system is important supporting equipment for mechanized milking in pastures. They are more suitable for manual milking pastures and milk collection stations, and dairy plants to cool and store fresh milk. Keep the cooled raw milk in the best condition and prevent bacterial growth.
Products parameters
| Model | 200L | 300L | 500L | 1000L | 2000L |
| Vertical | 1550*1000*1350mm | 1700*900*1550mm | 1700*1100*1950mm | 2250*1400*2200mm | / |
| horizontal | / | / | 1900*900*1150mm | 1680*1500*1500mm | 2050*1500*1500mm |
| Compressor | Copeland | Copeland | Copeland | Copeland | Copeland |
| Capacity | 200L | 300L | 500L | 1000L | 2000L |
| Power | 2 Kw | 2.6 Kw | 2.6 Kw | 2.6 Kw | 4.5Kw |
| Thermal insulation performance (temp.) | less than 1 ºC/3 H | less than 1 ºC/3 H | less than 1 ºC/3 H | less than 1 ºC/3 H | less than 1 ºC/3 H |
| Mixer | 0.75 Kw | 0.75 Kw | 0.75 Kw | 0.75 Kw | 0.75 Kw |
| Stirring Speed | 36 R/Min. | 36 R/Min. | 36 R/Min. | 36 R/Min. | 36 R/Min. |
| Refrigeration board | 2mm | 2mm | 2mm | 2mm | 2mm |
| Insulation Materials | 0.9mm | 0.9mm | 0.9mm | 0.9mm |
0.9mm |
| More | customizable | ||||

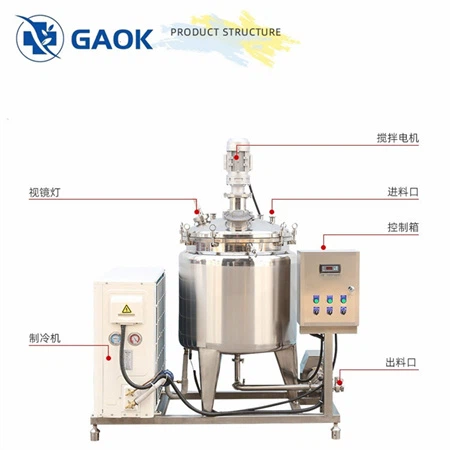

structure
The structure of Milk tank cooling system:
The refrigeration compressor unit uses a high-performance, energy-saving fully enclosed compressor equipped with a reliable protector, which will not burn out the motor due to overload or system failure. The insulation layer adopts a new polyurethane foaming process, which has good thermal insulation performance. The tank is made of high-quality stainless steel and equipped with automatic cleaning device and stirring device.
advantage
why choose us
Milk tank cooling system
1. The tank uses an advanced honeycomb plate evaporator to directly exchange heat with the milk for cooling.
2. The refrigeration compressor is imported from the United States Taikang or France Mayole fully enclosed compressor unit and the imported expansion valve and solenoid valve are equipped with reliable midpoint protectors, which will not burn out the compressor due to overload or system failure.
3. The tanks are all made of SUS304 or 316 stainless steel, with pressurized automatic rotating cleaning CIP sprinkler heads and automatic stirring devices.
4. The insulation layer is made of polyurethane foam, which has good thermal insulation performance.
application
Used for storage and cooling the fresh juice of pasture and farm.and also can be used for milk tank cooling system, dairy processing plants, and food, feed, pharmaceutical factories.
Our factory & quipment
company profile
packaigng&shipping
Hot Tags: milk tank cooling system, China milk tank cooling system manufacturers, suppliers, factory
