Product Profile

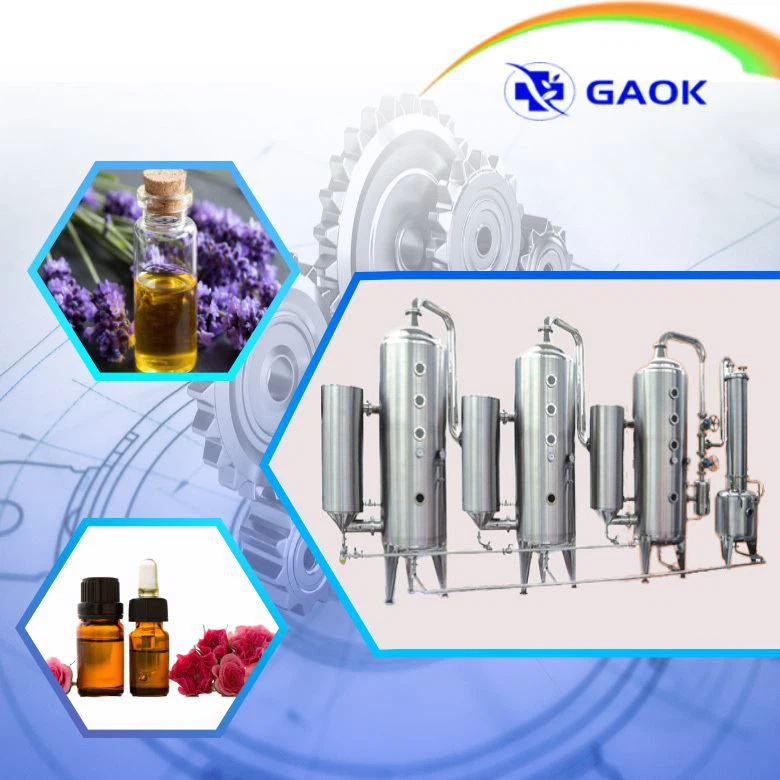

The Triple effect evaporator is suitable for the concentration of traditional Chinese medicine, Western medicine, glucose, starch, monosodium glutamate, dairy, oral liquid, chemical, food and other liquid materials, especially for the low-temperature vacuum concentration of heat-sensitive materials.
The Triple effect evaporator is often used for the evaporation and concentration of alcohol extract, alcohol sediment and other materials and the heat-sensitive low-temperature concentration of a variety of materials. It has the characteristics of short time and fast speed, and can be used in a single machine for normal pressure, vacuum concentration, paste collection and other operations.
| Model | GK-100L | GK-200L | GK-500L | GK-1000L |
| Evaporation Rate (L/hr) | 100 | 200 | 500 | 1000 |
| Evaporator Part Dimension (W*D*H cm) | 95*85*250 | 110*90*260 | 120*100*300 | 140*120*300 |
| Condenser Part Dimension (W*D*H cm) | 120*85*250 | 130*90*250 | 130*100*250 | 130*120*250 |
| Feeding Pump (kw) | 0.37 | 0.37 | 0.37 | 0.75 |
| Discharge Pump (Oil, kw) | 0.75 | 0.75 | 0.75 | 0.75 |
| Discharge Pump (Ethanol, kw) | 0.75 | 0.75 | 0.75 | 0.75 |
| Panel (kw) | <50 | <50 | <50 | <50 |
| Total Weight (kg) | 1000 | 1300 | 1500 | 1800 |
| Total Power (kw) | 4 | 4 | 6.5 | 6.5 |
| Electricity | 240V, 3 Phase, 60Hz or Customizable | |||
Single-effect evaporation:
The secondary steam generated during the evaporation of the solution in the evaporator is not reused.
Multiple-effect evaporation:
It is a series of evaporative operations where the secondary steam from the previous effect is used to heat the steam in the next effect. In Triple effect evaporator, the operating pressure and corresponding heating steam temperature decrease along with the boiling point of the solution.
FAQ
01.We offer customization services as per your requirements as following
1. Evaporation media (e.g.brine) .It would be based on the specific content, for example
wvaporation rate (kg/h) , processing capacity (kg/h), inlet concentration etc.
2. PH value
3. steel material
02.We offer machinery design plan
