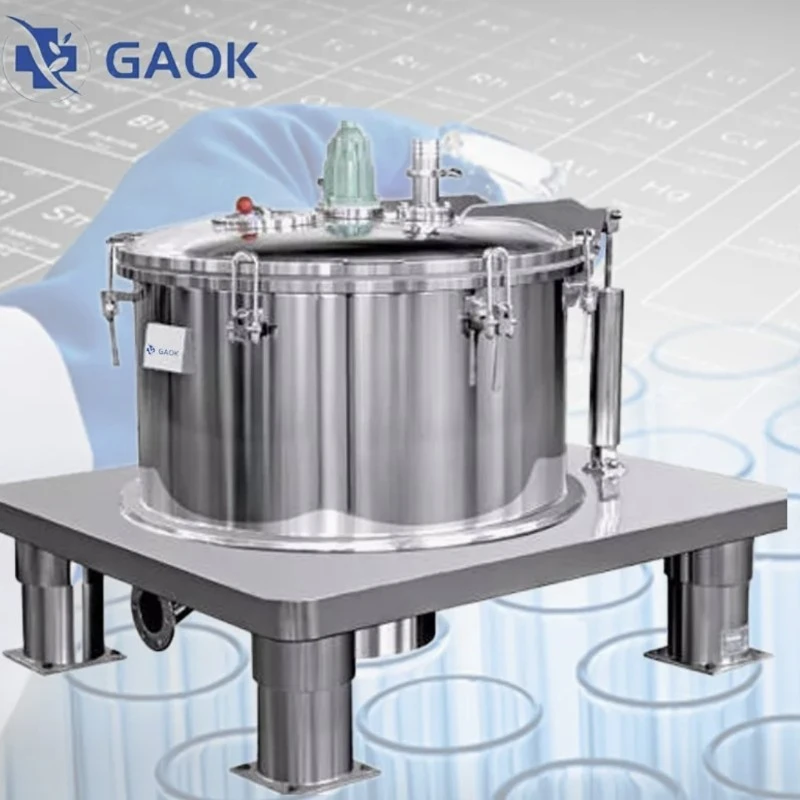

At AnYang Gaokang Medical Co., Ltd, we engineer Plate Separator for demanding solid-liquid separation where reliability and efficiency are paramount. Our GK Series, built around the core stability of a robust flat-plate base, delivers exceptional performance across chemical, pharmaceutical, food, and environmental applications.
Why the Flat-Plate Design Matters
- Unmatched Stability: The heavy-duty flat-plate foundation significantly lowers the center of gravity, dramatically reducing vibration during high-speed operation. This means smoother running, less stress on components, and crucially – no requirement for complex fixed foundations. Install it directly on your floor; the base is your operational platform.
- Plug-and-Play Installation: Save time and costs with simplified setup. Our Plate Separators are ready for action where you need them.
Engineered for Performance & Control
Our plate separator utilize powerful, variable-speed motors driven by PLC control, ensuring precise optimization of each process stage – gentle feeding at lower speeds followed by high-G force dewatering. Choose the capacity that fits your needs:
- GK450: Ideal for smaller batches or R&D/Pilot scale.
Bowl: Ø450mm x 300mm (H), 20L Volume, Max Load: 30kg
Power: 2.6kW (YB100L-2), Speed: 0-2825 rpm, Separation Factor: 1600
Compact Footprint: 650x650x620mm, Weight: 380kg
- GK600: The versatile workhorse for medium-scale production.
Bowl: Ø600mm x 315mm (H), 45L Volume, Max Load: 100kg
Power: 4.0kW (YBL160SL), Speed: 0-2884 rpm, Separation Factor: 2000
Dimensions: 800x800x760mm, Weight: 610kg
- GK800: Built for high-volume processing.
Bowl: Ø800mm x 400mm (H), 90L Volume, Max Load: 135kg
Power: 5.5kW (YB132M-4), Speed: 0-1500 rpm, Separation Factor: 1000
Robust Construction: 1100x1100x1000mm, Weight: 1300kg
Key Features for Demanding Applications
Material Flexibility
Standard construction uses corrosion-resistant materials; alloys like 316L, Hastelloy, or Titanium are available for highly corrosive or hygienic-critical duties (e.g., Pharma API, Food Grade).
Safety & Containment: Full compliance with safety standards. Options include:
- Liquid Damping: Advanced vibration absorption for ultra-smooth operation.
- Gas-Tight / Explosion-Proof (Ex d/e): Essential for processing solvents, flammable materials, or toxic substances (ATEX/DSEAR compliant).
- CIP/SIP Systems: For stringent cleaning and sterilization (Pharma/Biotech).
Discharge Options: Tailor the process:
- Knife Discharge (Lower, Automatic): Efficient, contained removal of dry solids – ideal for hazardous materials or continuous lines.
- Bag Lifting (Upper, Manual/Semi-Auto): Gentle handling for delicate crystals or products requiring minimal breakage, perfect for high-purity applications.
Process Control
PLC automation ensures repeatable cycles (feeding, washing, spinning, discharging) and data logging.
Designed for Your Industry
- Chemicals: Efficient separation of catalysts, polymer beads, pigments, dyes.
- Pharmaceuticals: Gentle handling of antibiotics, intermediates, crystals under cGMP. Explosion-proof options available.
- Food: Clarifying juices, separating starch/sugar crystals, dewatering food additives.
- Environmental: Dewatering mineral sludges (Cu, Zn), processing recovered solids.
Beyond Standard: Customization is Our Strength
The plate separator platform is highly adaptable. Need a specific bowl lining? Special discharge mechanism? Unique process sequence? We engineer solutions. Tell us your material, throughput, safety, and hygiene requirements.
