oil centrifuge machine

Oil centrifuge machine is a kind of spiral discharge sedimentation centrifuge, which is pushed through the blade on the spiral pusher to the slag discharge port at the small end of the drum, and the liquid phase is spilled through the overflow hole at the large end of the drum.

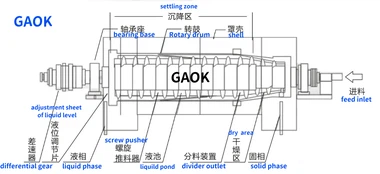

Oil centrifuge machine is a screw discharge settling centrifuge. It is mainly composed of a rotating drum with a high speed, a spiral conveyor with a hollow rotating shaft which is the same as the rotating drum and slightly lower than the rotating drum.

About oil centrifuge machine working principle are follow:

When the suspension to be separated is sent into the drum by the hollow rotating shaft, it is immediately thrown into the drum chamber under the action of centrifugal force generated by high-speed rotation.

The high-speed rotating drum produces a strong centrifugal force to stick solid particles, which are denser than the liquid phase, to the inner wall of the drum, forming a solid layer (because of the ring, called the solid ring layer). Due to its small density and small centrifugal force, water can only form a liquid layer inside the solid ring layer, which is called the liquid ring layer.

Because the rotation speed of the screw and the drum is different, there is a relative motion (that is, the speed difference). The sludge in the solid ring layer is slowly pushed to the cone end of the drum by the relative motion of the screw and drum, and after passing through the dry area, it is continuously discharged by the outlet distributed around the drum.

successful cases

Chemical industry

Centrifuges can be used to separate and purify chemical raw materials, such as catalysts, surfactants, pigments, etc.

Pharmaceutical industry

Centrifuges can be used to separate and purify pharmaceutical ingredients, such as antibiotics, vaccines, interferons, etc

Olive oil industry

Purification and clarification of Olive oil, degumming, desoap, dehydration and dewaxing of vegetable oil refining

Beverage industry

Centrifuges can be used to separate and purify food additives, colors, flavors, etc



Company Profile







Anyang Gaokang Medical Co.,LTD. is a collection of product design, development, manufacturing, engineering installation, after-sales service as one of the comprehensive enterprises.



The company's products are designed and manufactured in strict accordance with the relevant national equipment standards. Our products are involved in pharmaceutical engineering, dairy equipment, beverage equipment, biological engineering, chemical engineering, essential oil refining equipment and experimental equipment manufacturing and whole plant installation engineering.
