Product Introduction

Horizontal decanter centrifuge mainly works by rotating drum and screw at a certain differential speed in the same direction. This centrifuge is suitable for the separation of soybean protein, starch and other materials, and has the characteristics of compact structure, stable operation, strong adaptability, large production and convenient maintenance.

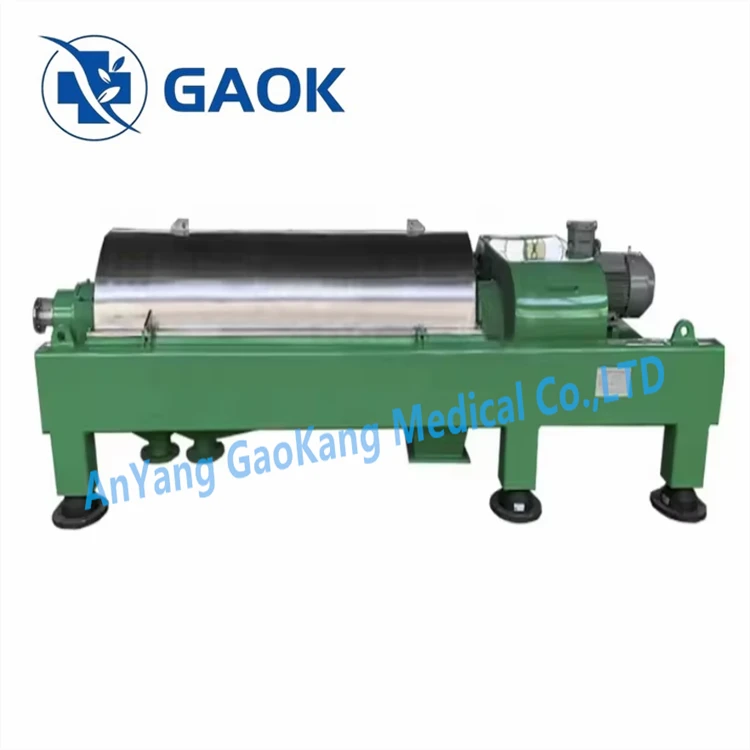

High Speed Centrifugal Decanter

Specification

Model	Bowl Dia	Bowl Length	Speed rpm	Capacity	Main Motor Power	Weight	Size
LW220	220 mm	930mm	5000	0.5-5 T/h	7.5 KW	1200kg	24207001010mm
LW300	300 mm	1200mm	4000	0.5-5 T/h	11KW	1500kg	26808301280mm
LW355	355 mm	1600mm	3800	1-10 T/h	15 KW	1850kg	34908601200mm
LW400	400 mm	1800mm	3650	2-15 T/h	18.5KW	2500kg	389010201200mm
LW450	450 mm	2000 mm	3650	3-20 T/h	22 KW	3000kg	429710801385mm
LW500	500 mm	2000mm	3000	5-45 T/h	30 KW	3800kg	433011401470mm
LW530	530 mm	2280mm	2900	10-60 T/h	45 KW	5000kg	492411701540mm
LW550	550 mm	2200mm	2780	15-80 T/h	55 KW	5580kg	439513701655mm

Equipment composition

Speed: The speed of horizontal decanter centrifuge is one of the important factors affecting its separation performance. In general, the higher the speed, the higher the separation factor, and thus the better the separation effect.
Material: Different materials of horizontal decanter centrifuge have differences in physical and chemical indicators such as wear resistance and corrosion resistance, which directly affect the service life and maintenance costs of centrifuges, and then affect work efficiency and productivity.
Separation factor: Separation factor is the main index to measure the separation performance of decanter centrifuge, which reflects the ratio of centrifugal force and gravity to the material.
Structural parameters: Structural parameters have a significant effect on the separation effect.
Adjustable parameters: The adjustable parameters of decanter centrifuge include the rotating drum speed, the difference speed between the screw and the rotating drum, the depth of the liquid pool, etc.
