Products Description
Supercritical olive oil extraction coffee oil extraction equipment mainly utilises supercritical fluids (usually carbon dioxide) at high pressures and temperatures. This technology is highly efficient, environmentally friendly and safe, and is capable of effectively extracting the desired substances from complex mixtures. Supercritical CO2 extraction technology is widely used in the extraction of vegetable oils and fats due to its good solvent properties.
Supercritical CO2 coffee oil extraction equipment usually consists of a high-pressure pump, an extraction kettle, a system temperature monitoring and control system, a separation and collection system, and other components. These equipments can be operated at conditions close to room temperature (35-40°C), effectively preventing the oxidation and escape of heat-sensitive substances. By controlling the pressure and temperature, the desired components can be selectively extracted.
The supercritical CO2 coffee oil extraction technique allows the extraction of olive oil from unbroken olives, a method that does not require a prior size reduction of the olives. In addition, this technique can be used to recover bioactive extracts rich in hydroxytyrosol from olive oil.
Main Configuration
|
MAIN CONFIGURATION |
REMARK |
|
Extraction Tank |
Volume:10L+1L (2 tanks),Max working Pressure:50MPa |
|
Separation Tank |
Volume:1x 4L,1x2L,Max working Pressure:30MPa |
|
Pump |
CO2 high-pressure pump,Co-solvent pump |
|
Cooling System |
Temperature range：-5℃～+5℃ |
|
Heating Exchange System |
Max working Pressure：50MPa |
|
Purification System |
Max working Pressure：50MPa |
|
CO2 Storage Tank |
Max working Pressure：16MPa |
|
Flowrate Meter |
Model:Metal tube float (6.3-63L/H) |
|
Temperature Control System
|
Temperature Range: Room temperature~75℃ |
|
Safety Devices |
Pressure gauge at high pressure pump outlet,overpressureprotection The extractor, separator, evaporator, dry purifier and mixer have safety valve to keep safe of system. |
|
User-supplied |
Installation dimension: 2700×2500×1600mm |

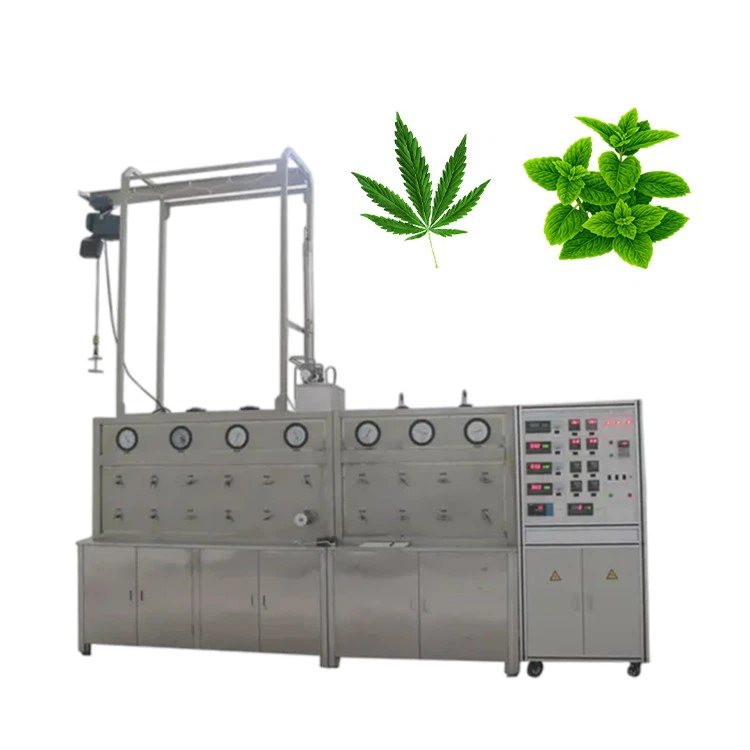

Products Pictures
about us
Make Your Research More Accurate & Efficient
We design and manufacture extraction prodcution line for users in need of a simple device for small amounts of extract, as well as more complex equipment for industrial use. Our offer includes preprocess(dryer /grinder) ,coating machine ,package machine and process systems where the substance used as solvent is either a volatile hydrocarbon (butane extraction), an alcohol (alcohol extraction), or CO2 (supercritical extraction). Given the investment cost, complexity of use, and extract quality, each system has some advantages and disadvantages.
