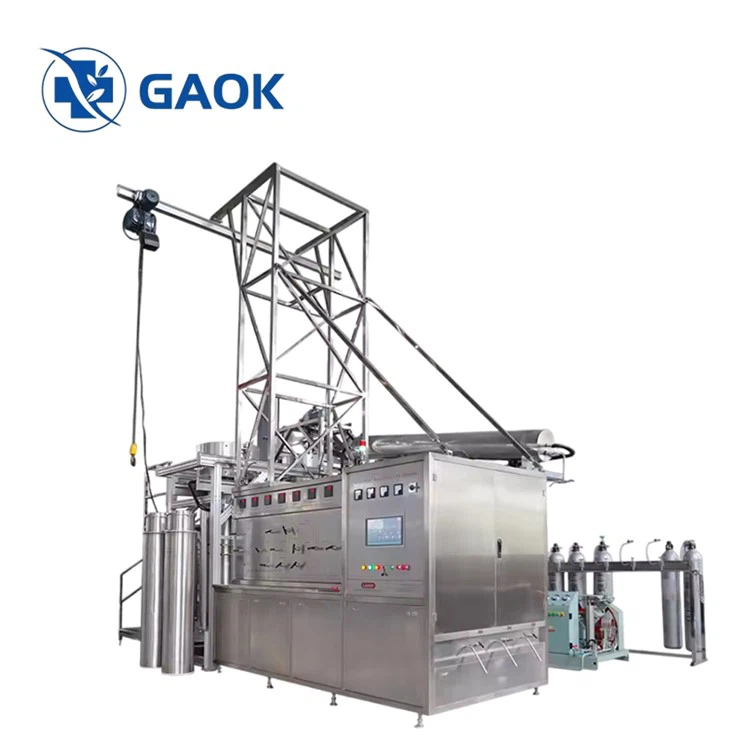

supercritical carbon dioxide extraction machines

Supercritical CO2 Extraction Machines: Precision, Power & Purity from AnYang Gaokang Medical Co., Ltd

At AnYang Gaokang Medical Co., Ltd, we engineer supercritical carbon dioxide extraction machines that set the benchmark for efficiency, safety, and purity. We understand the critical need for scalable, reliable technology – whether you're pioneering new compounds in the lab or running high-volume production. Our range is built on decades of expertise, offering solutions perfectly aligned with your throughput and quality goals.

• Truly Green: We harness CO2 – non-toxic, non-flammable, and easily recyclable within our closed-loop systems.
• Gentle Yet Powerful: Extract delicate, heat-sensitive actives (like essential oils, vitamins, or cannabinoids) without degradation. Our precise temperature and pressure control ensure optimal compound integrity.
• Unmatched Selectivity: Dial in the perfect extraction profile by fine-tuning pressure and temperature. Target specific compounds and achieve superior fractionation, especially in our multi-separator configurations.
• Engineered for Reliability: Every vessel, pump, and seal is built to ASME standards using premium 316L stainless steel. Safety valves, PLC automation, and robust construction ensure years of trouble-free, high-pressure operation.

We offer a clear progression from R&D to full industrial production:

• Lab & Pilot Champion (5L + 1L): Your ideal partner for process development and small-batch trials. Featuring dual extractors (5L) and dual separators (1L), operating at 500 bar with a 60 L/h CO2 flow. Compact footprint (~10 m², 2.5m H), perfect for research labs and initial feasibility studies.
• Bench to Small Production (10L): Bridge the gap between testing and initial commercial batches. Three extractors (10L total) and two separators handle 10-20 kg of raw material per cycle at 500 bar, with a 100 L/h flow. Efficient use of space (~10 m², 3m H).
• Established Production Workhorse (25L x 3): Designed for serious throughput. Three robust 25L extractors and two separators process 50-150 kg per run. Operating flexibly between 400-500 bar with a 300 L/h flow, this system balances power and footprint (~20 m², 4.5m H).
• High-Capacity Performer (50L x 3): Meet growing demand. Three large 50L extractors and two separators efficiently handle 0.1 - 0.3 tons of material. Running at 400-500 bar with 600 L/h flow, it's built for volume (~80 m², 5.5m H).
• Industrial Powerhouse (100L x 3): Engineered for large-scale, continuous operation. Three massive 100L extractors and two separators process 0.2 - 0.6 tons per cycle. Delivering 1000 L/h flow at 400-500 bar, this is the backbone of major extraction facilities (~130 m², 7m H).
• The Titan (200L x 3): For the ultimate in production scale. Three 200L extractors and two separators manage 0.5 - 1.2 tons of raw material. With a commanding 1500 L/h flow at 400-500 bar, this system dominates high-volume requirements (~200 m², 8.5m H).

• Intelligent Control: Advanced PLC systems provide full automation, precise parameter control (P, T, flow, time), comprehensive data logging, and remote monitoring for consistent, repeatable results.
• Optimized Separation: Multiple separator vessels allow for precise fractionation, maximizing yield and purity by step-wise pressure reduction. Durable collection systems ensure easy product recovery.
• Efficient CO2 Recycling: Integrated condensers and recovery tanks minimize CO2 consumption and operational costs.
• Optional Flexibility: Need to tackle more polar compounds? Our integrated co-solvent (entrainer) pump systems seamlessly add modifiers like ethanol when required.

Choosing the right SC-CO2 system is critical. We don't just sell machines; we provide solutions backed by deep technical expertise. Let us help you select the perfect configuration (extractor volume, pressure rating, flow rate, footprint) to maximize your ROI, from initial concept to full-scale production.

Ready to harness the power of supercritical CO2 with unmatched precision and reliability? Contact AnYang Gaokang Medical Co., Ltd today for a detailed consultation.
