Products Description
continuous sedimentation tank is mainly used for the alcohol precipitation process of the concentrated solution of Chinese medicine decoction in water, and is also applicable to other pharmaceutical, chemical, food, oral liquid, health care products, dyes and other industries in the suspension of freezing or ambient precipitation, solid-liquid phase separation of the process operations.
After the sedimentation is completed, open the supernatant discharge valve, and use the self-priming pump to extract the supernatant. the supernatant level will gradually drop with the supernatant level, After the supernatant is pumped out, At this time, the slag outlet can be opened to discharge the sediment. According to different precipitates of different materials, the bottom butterfly valve can be opened first to discharge the thinners.
Continuous sedimentation tank

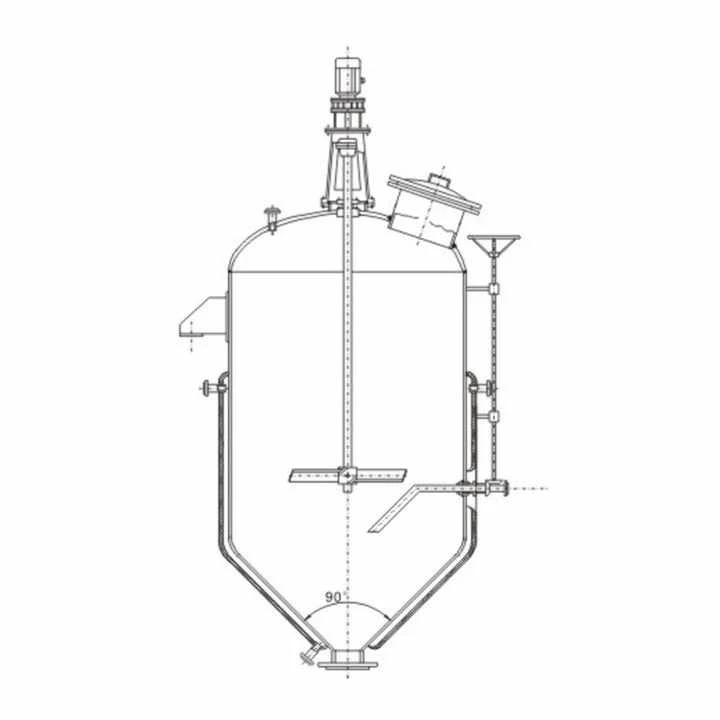

- An alcohol settling tank is usually a cylindrical vessel with an oval head and a conical bottom.
- The interior is fitted with a propeller-like agitator for mixing the material.
- The equipment is equipped with a special micro-adjustable rotating outlet pipe and an inlet valve.
- The jacket of the unit can be circulated with chilled brine or cooling water to indirectly cool the liquid material and control the temperature of the liquid precipitation.
high quality
Advanced Equipment
Professional Team
One-Stop Solution
high quality
Efficient and precise processing and testing equipment.
advanced equipment
Efficient and precise processing and testing equipment.
professional team
Efficient and precise processing and testing equipment.
global shipping
Efficient and precise processing and testing equipment.
Continuous sedimentation tank Manufactruing process
Working Principle
By circulating frozen brine or cooling water in the jacket layer, the temperature of the liquid material in the tank can be lowered, thus realising liquid-solid separation under low-temperature freezing condition, in order to improve the purity and clarity of the extract.
- Sedimentation process: Alcohol sedimentation tank is used for alcohol sedimentation process in the industries of Chinese medicine oral liquid, food and health products. It is a kind of solid-liquid separation equipment, used for the purification of the extracted liquid and the removal of starch, protein and other substances that are not soluble in alcohol
How does the mixing speed-reducer work in the tank?
- In the upper part of the mixing speed range, a single speed reduction is usually used, either with gears or belts. Gear reducers are typically used in low-speed portable mixers, while belts are used in many side-entry mixers
- Most mixing operations require much lower speeds than standard motor speeds, such as 1800 or 1200 revolutions per minute (rpm) motor speeds need to be reduced to 350 to 30 rpm. Mixing speed reducers reduce the high speed rotation to a lower speed suitable for the mixing application by means of gears or belts.
- The role of the mixing speed reducer in alcohol settling tanks is to achieve effective mixing by reducing the high speed rotation of the motor to a lower speed suitable for the mixing operation, whilst at the same time increasing the torque.
Various Types of Agitators：
Different types of mixer are available for various working medium with different viscosity and property.
Parameter
|
Model and specification |
GKCC-300 |
GKCC-500 |
GKCC-1000 |
GKCC-1500 |
GKCC-2000 |
GKCC-3000 |
||||
|
Volume(L) |
0.3 |
0.5 |
1 |
1.5 |
2 |
3 |
6 |
|||
|
Heat exchanging area |
1.8 |
3.0 |
4.5 |
6.5 |
7.5 |
8.5 |
13 |
|||
|
Work temperature |
normal temperature~-15 |
|||||||||
|
Jacket designed pressure(Mpa) |
0.09~0.4 |
|||||||||
|
Pressure inside pot(Mpa) |
Atmospheric pressure |
|||||||||
|
Agitator motor(KW) |
0.75 |
0.75 |
1.5 |
2.2 |
2.2 |
3 |
5 |
|||
|
Agitator rotary speed(r/min) |
72 |
72 |
72 |
72 |
72 |
72 |
125 |
|||
|
Inside diameter |
600 |
800 |
1000 |
1200 |
1300 |
1500 |
1600 |
|||
|
Outside diameter |
800 |
1000 |
1200 |
1400 |
1500 |
1700 |
2000
|
|||
|
Weight |
450 |
500 |
580 |
630 |
910 |
1410 |
2080 |
|||
|
sizes(mm) |
L |
600 |
800 |
1000 |
1200 |
1300 |
1400 |
1600 |
||
|
W |
850 |
1050 |
1300 |
1550 |
1650 |
1750 |
2000 |
|||
|
H |
900 |
900 |
1200 |
1200 |
1300 |
1400 |
2700 |
|||
