Products Description

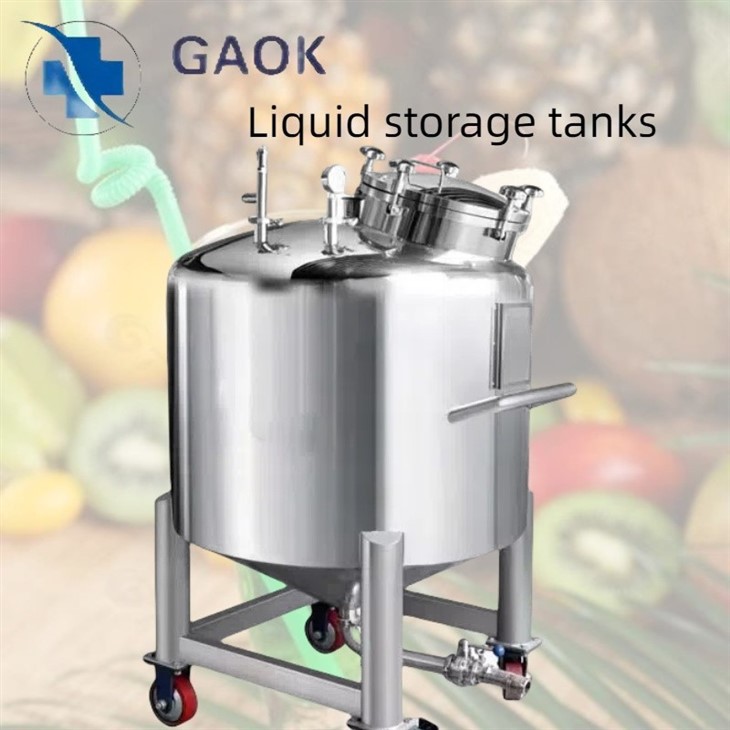

100L anti-corrosive chemical liquid mixing tank with agitator mixer and transfer pump
Structure:
Stainless steel mixing tanks are widely applied in the beverage, food, dairy, chemical and process industries used as blender tank, buffer tank and storage tank, which cleanable to sanitary standards.
1. Material:SUS304 and SUS 316L available
2. Capacity:50L-20000L
3. Widlely used in food, beverage,dairy
4. Single layer/double layers/three layers
5. Mirror Polished inside and outside
6.Three feet
Technical Parameters:
|
Model |
Power(KW) |
Speed(r/min) |
Layer |
Dimension of tank(MM) |
|
GK-100 |
0.75 |
35 |
single |
550x500 |
|
GK-200 |
0.75 |
35 |
single |
650x650 |
|
GK-300 |
0.75 |
35 |
single |
750x750 |
|
GK-500 |
0.75 |
35 |
single |
900x850 |
Features
- Composed of a motor, reducer, tank body, tank cover, agitator, support, transmission device, shaft sealing device, and electrical control box.
- Equipped with electric heating and steam heating jackets and related devices for process requirements.
- Possesses cooling devices to maintain desired temperatures.
- Stainless steel liquid mixing tank body and tank cover can be connected by flange sealing or welding.
- Process openings such as feed and discharge ports, observation windows, temperature and pressure measurement ports, steam fractionation, and safety venting available.
- Stainless steel liquid mixing tank can be used for standalone production or connected to a complete automated production line.
- Allows quantitative addition of materials for efficient mixing and blending.
- Connects seamlessly to a fully automated quantitative filling, capping, sealing, and labeling production line.
- Optional connection to a semi-automatic filling machine for small batch production.
