Products Description
Ultrasonic Homogenizer use the cavitation of ultrasonic to disperse the coacervate particle. It put the required processing of particulate suspension (liquid phase) in the super sound field, use appropriate ultrasonic amplitude and duration to process.
Due to the inherent characteristics of powder particles coacervate, so for some powder which could not be dispersed well in medium, you could add the right amount of dispersant to keep the dispersed steady-state, general could reach dozens of nanometers, even more small.
Products parameters
| Model | Ultrasonic frequency (KHz) | Ultrasonic power ratio | Random probe φ(mm) | Crushing capacity (ml) | Optional probe φ(mm) | Sample temperature protection |
| GK-150Y | 22±1 | 1%-99% (5-150W) |
φ6 | 200 | φ2,φ3 | RT~99ºC |
| GK-250Y | 22±1 | 1%-99% (10-250W) |
φ6 | 350 | φ2,φ3 | |
| GK-650Y | 22±1 | 1%-99% (10-650W) |
φ6 | 600 | φ2,φ3,φ10,φ12 | |
| GK-1000Y | 22±1 | 1%-99% (10-1000W) |
φ6 or φ10 | 1000 | φ2,φ3,φ12,φ15 | |
| GK-1200Y | 19-23 | 1%-99% (10-1200W) |
φ20 | 1200 | φ12,φ15,φ22 | |
| GK-1500Y | 19-23 | 1%-99% (10-1500W) |
φ20 or φ22 | 1600 | φ12,φ15,φ22 | |
| GK-1800Y | 19-23 | 1%-99% (10-1800W) |
φ20 or φ22 | 1800 | φ12,φ15,φ22 | |
| GK-2000Y | 19-23 | 1%-99% (10-2000W) |
φ20 or φ22 | 2000 | φ15,φ22,φ25,φ28 |

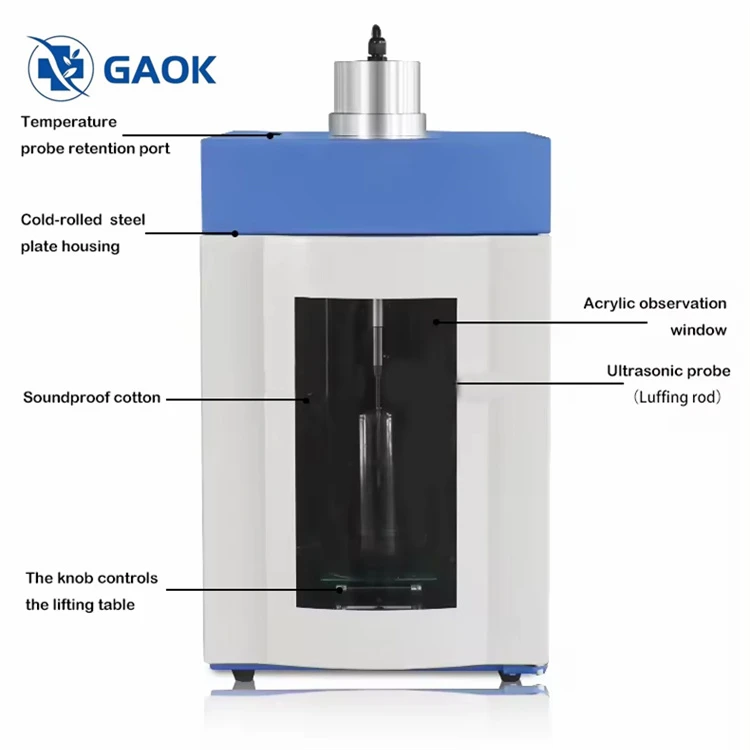

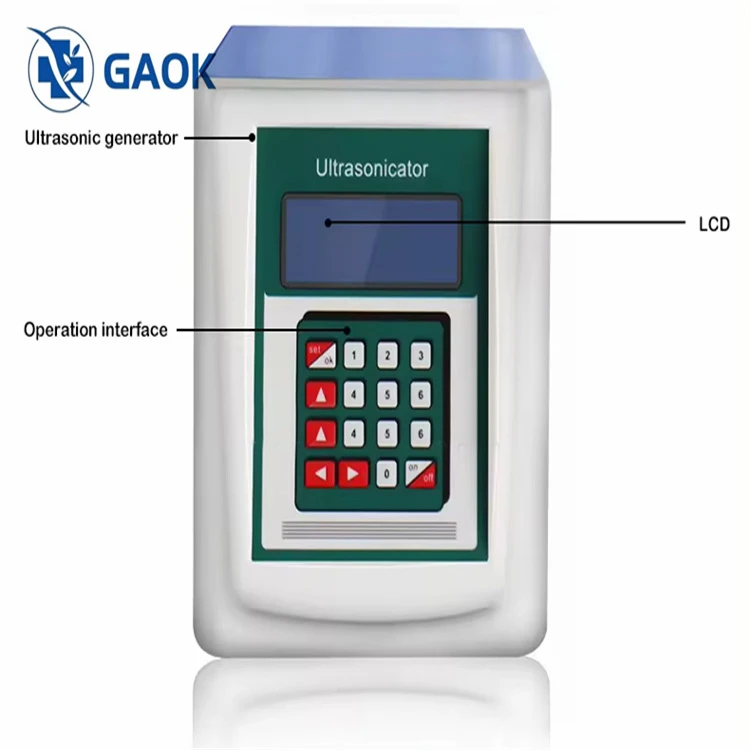

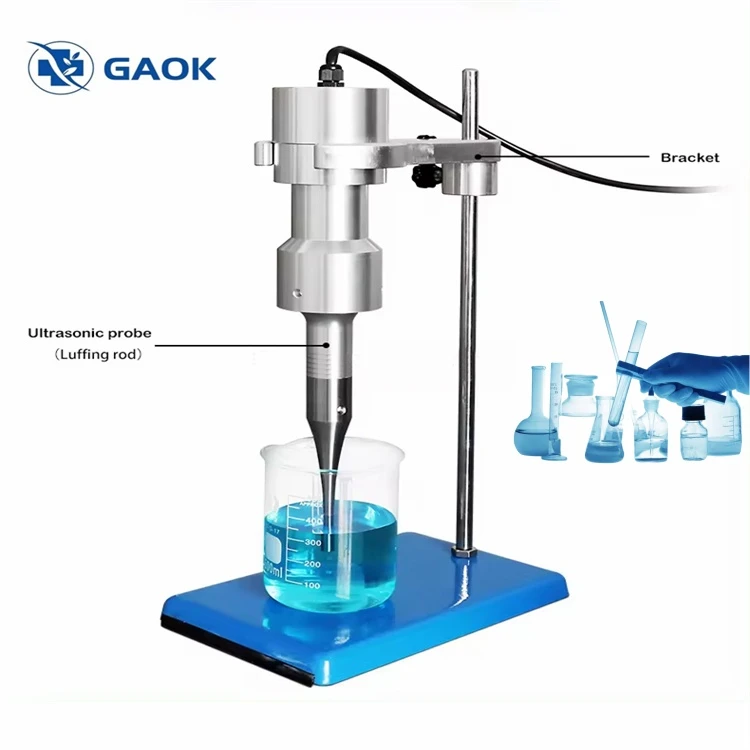

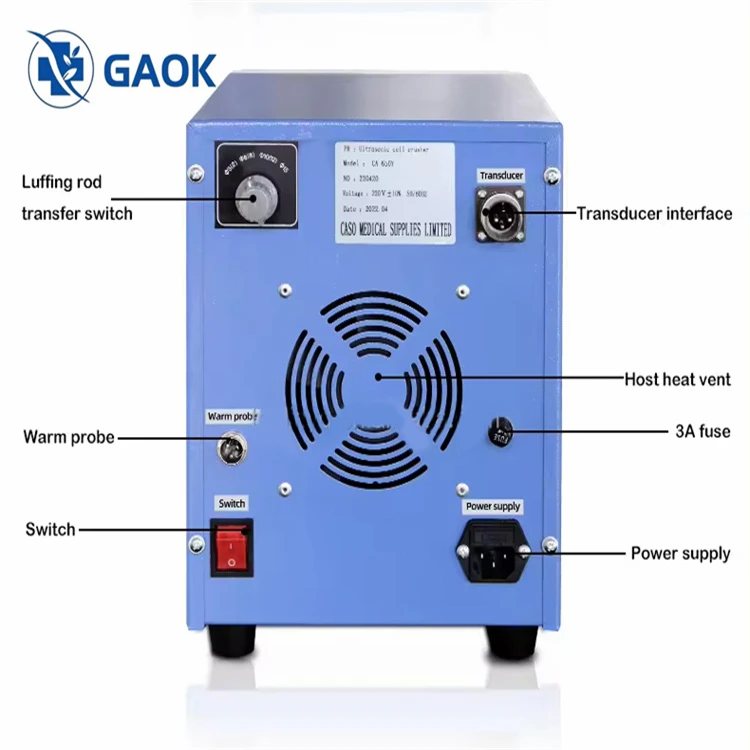

structure
working principle
Ultrasonic Homogenizer components mainly include high-power ultrasonic transducers, horns and tool heads, which are used to generate ultrasonic vibrations and transmit vibrational energy into liquids. The transducer converts the incoming electrical energy into mechanical energy, which is ultrasound.
Ultrasonic Homogenizer are powerful tools for mixing and homogenizing solid-liquid and liquid-liquid suspensions. Ultrasonic homogenization is a mechanical process used to reduce particles in a liquid, making them uniformly fine and well-distributed.
advantage
why choose us
why choose our products
- High quality Titanium alloy ultrasonic probe.
- Ultrasonic horn with different size and type for selection
- Digital generator, auto-tuning, auto search frequency
- With automatic alarm protection, easy to operate
- Power adjustable from 1% to 99%
- Amplitude stability, long working hours, radiation area is increased 2.5 times than traditional tools
- Providing consulting services and custom reactor designs
- Customized sizes available for laboratory and high volume industrial applications.
application
our case
- Reaction Acceleration - cavitation accelerates chemical and physical reactions.
- Fine Particle Dispersion - e.g. nanoparticle processing
- Disruption and Cell Lysing - will break open biological tissues and cells to extract enzymes and DNA, prepare vaccines.
- Ultrasonically lysing cells and spores in a liquid flowing continuously or intermittently through a cylindrical reactor.
- Homogenization - making uniform mixtures of liquids.
- Emulsification - processing foods, pharmaceuticals etc.
- Dissolution - dissolving solids in solvents.
- Degassing - removing gases from solutions without heat.
