Products Description

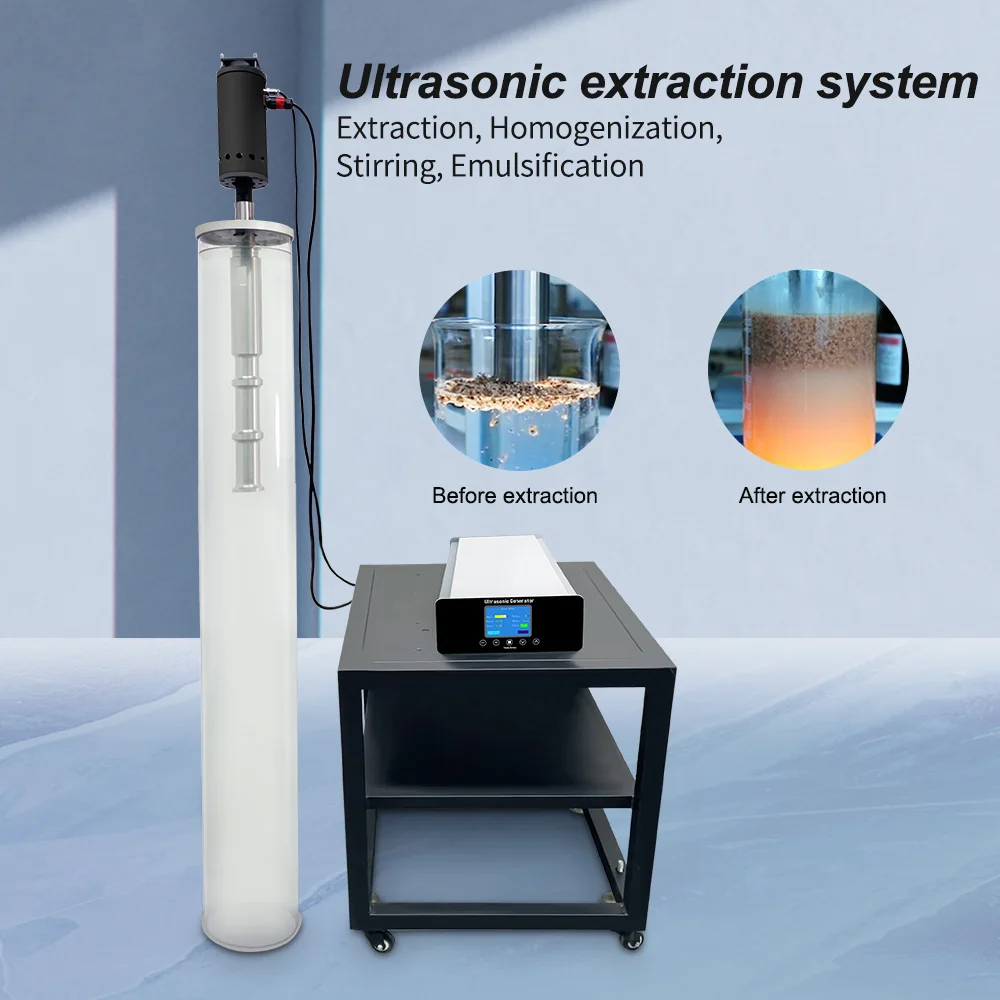

Ultrasonic Extraction System is an ultrasonic product for the matching of extraction equipment. The ultrasonic core accessories composed of intelligent automatic frequency tracking ultrasonic generator, high-Q high-power transducer, and titanium alloy extraction tool head have good performance in extraction, homogenization, stirring, emulsification and other aspects. The system has functions such as automatic frequency tracking, adjustable power, adjustable amplitude, and abnormal alarm. Equipped with RS485 communication, various parameters can be changed and observed through HMI.
Parameter
| Model | GK-50 |
| Working frequency | 19.90±0.8khz |
| Ultrasonic power | 2600W |
| Operating Voltage | 220V±10% |
| Working diameter | 50mm |
Features

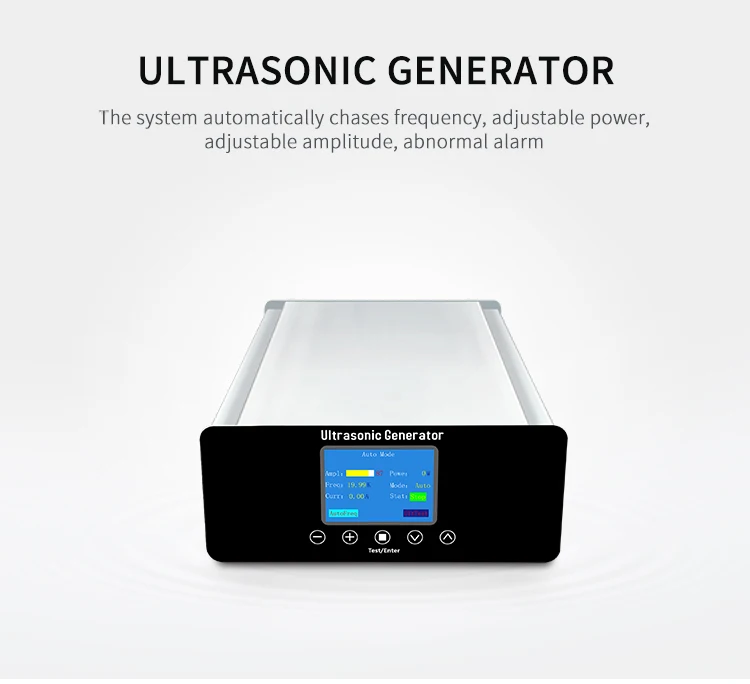

Intelligent automatic frequency tracking ultrasonic generator, real-time frequency tracking, to ensure that the ultrasonic wave is in the best effect range
20khz 2600W high-power transducer, low impedance, high conversion efficiency, strong amplitude

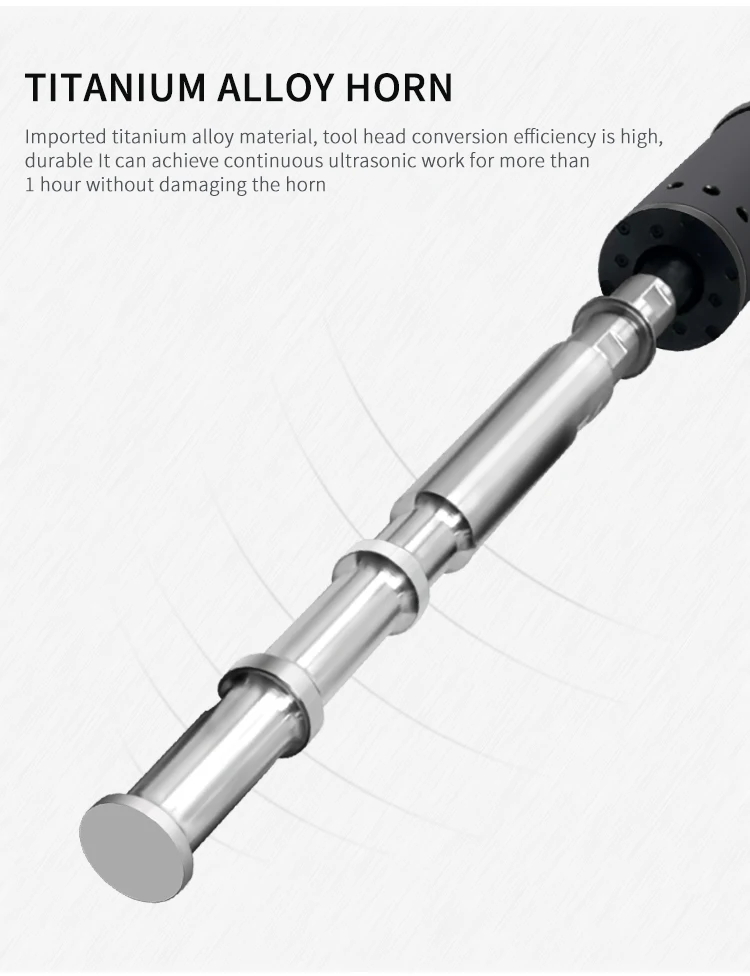

Titanium alloy extraction application tool head has high conversion efficiency and long service life
PLC or RS485 control function, with error output port
Abnormal protection of frequency, power, transducer current, etc.
FAQ
1 What products does your company have?
--Plant Extraction Equipment
-- Jacketed Glass Reactor
--Vacuum rotary evaporator
--Vacuum drying oven
-- Production line solutions
2How to order
--Communicate with our salesman
--Products are in PDF/JPF/Vidio format, free design service for all customers.
--Arrangement of delivery after the balance of payment
--Provide related equipment
--Welcome your second order and more orders in the future.
3 Quality Assurance
--Each board is inspected at least 4 times
--100% inspection before despatch
