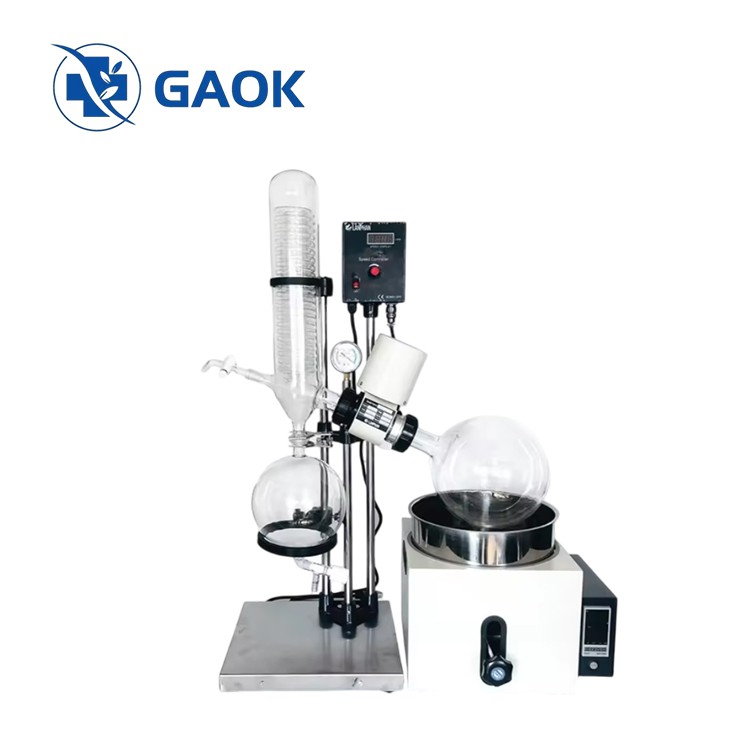

vacuum rotary evaporator

Vacuum rotary evaporator mainly used in biology, medicine, chemical, food, and other fields of test, test and production. Has a large capacity, large caliber rotary evaporation bottle, placed in a water bath, rotate the heating, so that the solution of diffusion efficient evaporation.

Send Inquiry

Products Description

Vacuum rotary evaporatorr can be used with circulating water type multi-purpose vacuum pump, diaphragm vacuum pump, low-temperature cycle(vacuum)pump, circulating cooler, constant temperature cycle, low-temperature coolant circulation pump, and other ancillary components of the system.

Products parameters

Model	GK-1002	GK-2002	GK-3002
Holder material	Stainless steel	Stainless steel	Stainless steel
Pot shell Material	Spray anti-corrosion 490430540mm	Spray anti-corrosion 630534638mm	Spray anti-corrosion 710620700mm
Pot bravery	Stainless steel 350*220mm	Stainless steel 450*250mm	Stainless steel 000*280mm
Plate size	474*474	534*504	804*574
Evaporator flask	10L flange mouth:Φ95mm	20L flange mouth:Φ95mm	30L flange mouth:Φ125mm
Collect flask	5L flange mouth:Φ50mm	10L flange mouth:Φ60mm	20L flange mouth:Φ60mm
Vacuum degree	0.098Mpa	0.098Mpa	0.098Mpa
Rotary speed	0-110RPM	0-110RPM	0-110RPM
Rotary power	120W	120W	180W 220V/50HZ
Heating power	3KW	5KW	8KW 380V/50HZ
Heating temp.	0-400ºC	0-400ºC	0-400ºC
Temp. accuracy	±1ºC	±1ºC	±1ºC
Lifting stroke	180mm	180mm	180mm
Voltage	220V/50HZ	220V/50HZ	220V/50HZ
Dimension	9704801950	11705402200	15206202470mm
Packing size	1350350400 1280570660mm	1370700680 700680740mm	1450390440 1150840660 790730790mm
Packing weight	100kg	123kg	170kg

structure

Structure

details

advantage

Vacuum rotary evaporator:

Glass charging valve, new structure and glass material applied, which is able to offer purely clean charging process and durable use experience.

Flange quick press ring, offer new experience on easy, reliable, and high sealing connection for flanges, no tools required.

PTFE vacuum discharging valve, which is anti-corrosion, no vacuum degree, no pollution to solvent received.

Ex-proof modification, explosion proof system are available.

Bumping tube design to prevent unexpected solution bumping into receiving flask.

Numerical control constant temperature heating bath.

Sealing system are anti-corrosion and wearable.

Complete set customize include rotary evaporator ( 1L,5L,10L,20L,50L,100L ), chiller, vacuum pump, vacuum controller.

application case

Vacuum rotary evaporator is the necessary basic instrument for chemical industry, medicine industry, institutions of higher learning and scientific research laboratory and other units, it is the main means for manufacturing and analyzing experiments when they do extraction and concentration .
