high speed rotary evaporator Products Description
1.The new type adopts alarge-scale distiller, so thatthe evaporation capacityincreases, and the heat lossdecreases.
2.The new type adopts receiving bottle with a valve which can continuously discharge during
3.The new type adopts aglass sleeve to reduce leakage and obtain a bettervacuum environment.

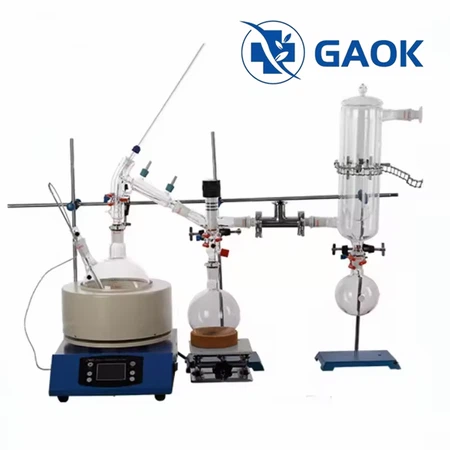

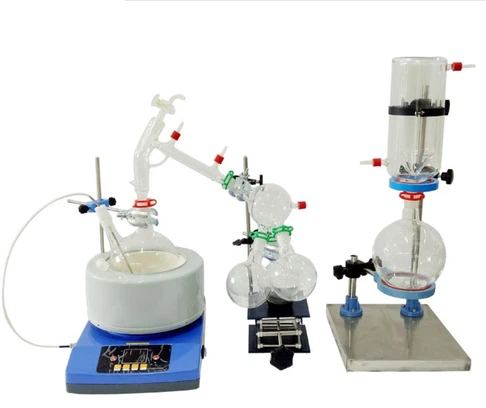

Products Display
high speed rotary evaporator parameters
| Model | SPD-2L | SPD-5L | SPD-10L | SPD-20L | |||||||||
| Material | Borosilicate Glass 3.3 | ||||||||||||
| Heating Temperature | Ambient to 300ºC | ||||||||||||
| Working Pressure | Around 5 Pa | ||||||||||||
| Distillation Vessel | Volume(L) | 2 | 5 | 10 | 20 | ||||||||
| Size | 2×24/40 joint | 34/45 joint 24/40 joint |
24/40 joint 2×34/45 joint |
45/50 joint 2×29/42 joint |
|||||||||
| Receiving Vessel | Volume(ML) |
2×500 ml |
1×500ml 1×1000ml |
2×1000ml 2×2000ml |
2×2000ml 2×5000ml |
||||||||
| Size | 24/40 joint | 24/40 joint | 24/40 joint | 29/42 joint | |||||||||
| Cold Trap | Dry Ice Volume(L) | 1 L | 2 PCS×1L | ||||||||||
| Heating Mantle | Heating Power (w) | 650 | 1100 | 2100 | 3000 | ||||||||
| Roating Speed(rpm) | 50-1800 | ||||||||||||
| Motor Power (w) | 40 | ||||||||||||
| Vacuum pump | Pumping Rate(L/S) | 2 | 4 | 4 | 6 | ||||||||
| Cooling Circulator | Cooling Temperature | -10ºC~85ºC | |||||||||||
| General | Voltage | 110V 60HZ or 220V 50/60HZ,1 Phase | |||||||||||
Products Application
High Speed Rotary Evaporator Ideal For:
- CBD/THC distillation
- Essential oil fractionation
- Pharmaceutical intermediate purification
