Products Description

Hopper Mixer

Product Description: Bin blender pharmaceutical with multiple working surfaces, covering a full volume of 50 - 3000L, with zero cross-contamination
Working Principle: Push in → One-click lifting and clamping (pressure sensing) → 30° inclined three-dimensional rotation → Vertical braking → Descend → Automatic data printing
Key Features

One machine with multiple functions
30° three-dimensional mixing
Uniformity ≥ 99%
GMP (316L, Ra ≤ 0.4)
PLC data traceability
Sealed and dust-free
Multiple safety interlocks
HTD vs HZD structure comparison table

Applications: Pharmaceutical general mixing / Food / Health products / Chemicals / New energy materials / Feed additives
Why Choose Us: Certification, customization, turnkey, quality control, after-sales service

Products Parameters

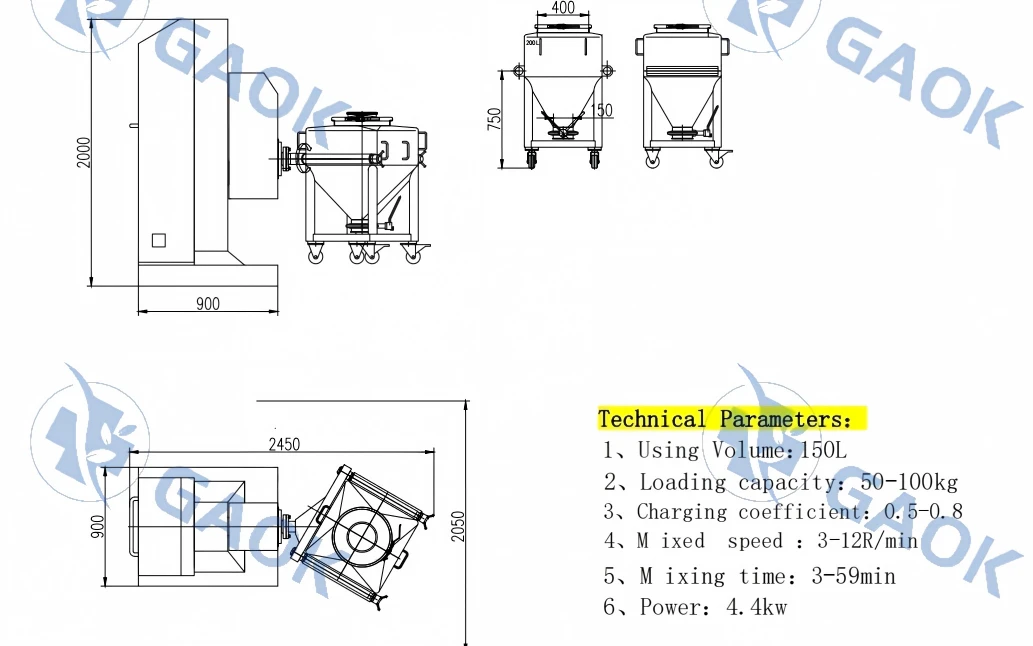

Model	Main structure size
Model	A	B	C	L	H1	H2	H3	H4	H5
GK- 100	600	1160	1300	2200	250	700	1100	1190	2000
GK- 200	600	1350	1550	2250	250	700	1230	1460	2100
GK- 300	600	1420	1650	2500	300	750	1560	1630	2200
GK- 400	600	1450	1850	2650	400	750	1690	1780	2300
GK- 500	800	1550	1950	2800	400	750	1800	1880	2400
GK- 600	800	1650	2080	2900	400	750	1870	2000	2400
GK- 800	800	1750	2300	3000	400	750	1970	2150	2500
GK- 1000	800	1850	2350	3150	400	750	2050	2250	2700
GK- 1200	800	1900	2650	3100	450	850	2150	2350	2800

Our factory & Euipment

Working principle

The pre-loaded bin is wheeled into the rotating frame. At the touch of one button on the HMI, the system automatically lifts the bin to the mixing height, clamps it (a pressure sensor confirms safe locking), and drives the frame into rotation.

The Bin blender pharmaceutical's symmetrical axis is set at a 30° angle to the rotation axis, so the material performs a continuous three-dimensional motion - tumbling, radial convection and tangential diffusion along the bin wall - delivering fast, gentle and highly uniform blending.

There is no internal agitator, no forced shear, and no mechanical temperature rise. When the pre-set time and speed are reached, the rotating body stops vertically by the brake, the bin is lowered to the ground, and the process data is printed automatically. The bin is then wheeled out and transferred fully sealed to the next process (tableting, capsule filling, packaging or storage).

Features

Standard

HTD/HZD

Certification

CE,ISO

1. One Machine, Multiple Bins - Maximum Flexibility

Bin blender pharmaceutical host machine can be equipped with several bins of different specifications. Different products use different bins, eliminating cross-contamination while greatly reducing equipment investment. Ideal for multi-variety, multi-batch production.

2. 30° Inclined Axis, True 3D Motion

Materials tumble with the rotating body while moving tangentially along the bin wall, producing intensive overturning and high-speed tangential motion - the optimal mixing effect without damaging particle shape.

3. Excellent Homogeneity - ≥ 99%

Mixing uniformity reaches 99% or higher, with a high loading coefficient of 50% – 80% (most models designed at 0.8), giving large effective batch capacity.

4. Full GMP / cGMP Compliance

All Bin blender pharmaceutical-contact parts are SS316L with mirror polish (Ra ≤ 0.4 μm); the frame is SS304. The bin interior is smooth with no dead corners and no exposed screws - easy to clean, no material residue, no cross-contamination.

5. Fully Automatic with Data Traceability

PLC + touch screen HMI control with variable frequency drive (VFD). Mixing time, rotation speed and other parameters are adjustable. The system features automatic positioning, automatic process-data printing, fault alarm, recipe management and data storage - fully supporting GMP audit traceability.

7. Multiple Safety Protections

Equipped with infrared safety device, anti-misoperation discharge butterfly valve, pressure-sensor clamp interlock, and emergency braking - the machine cannot start mixing until the bin is confirmed clamped in position.

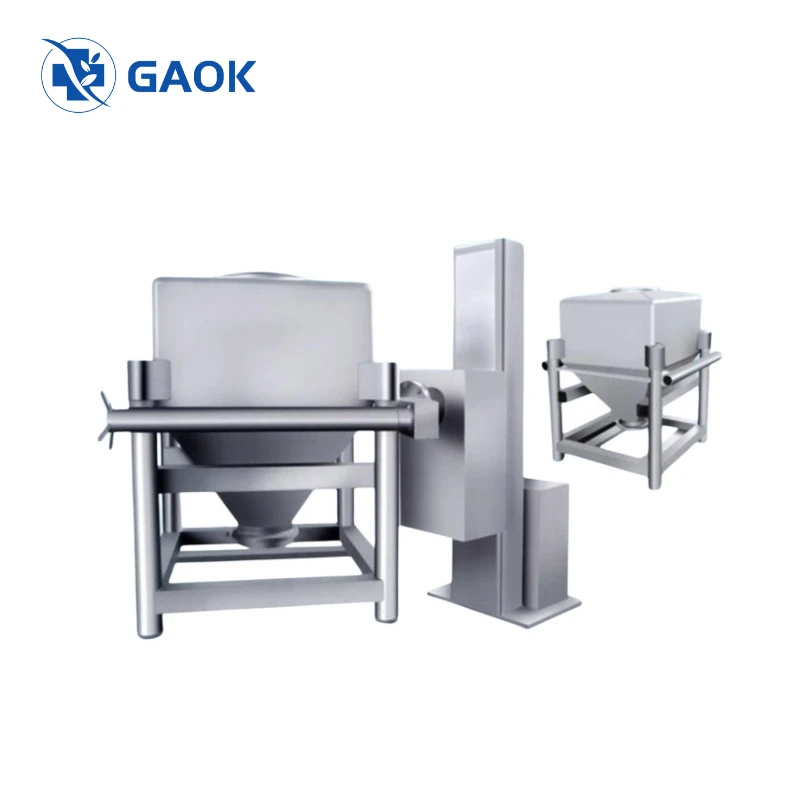

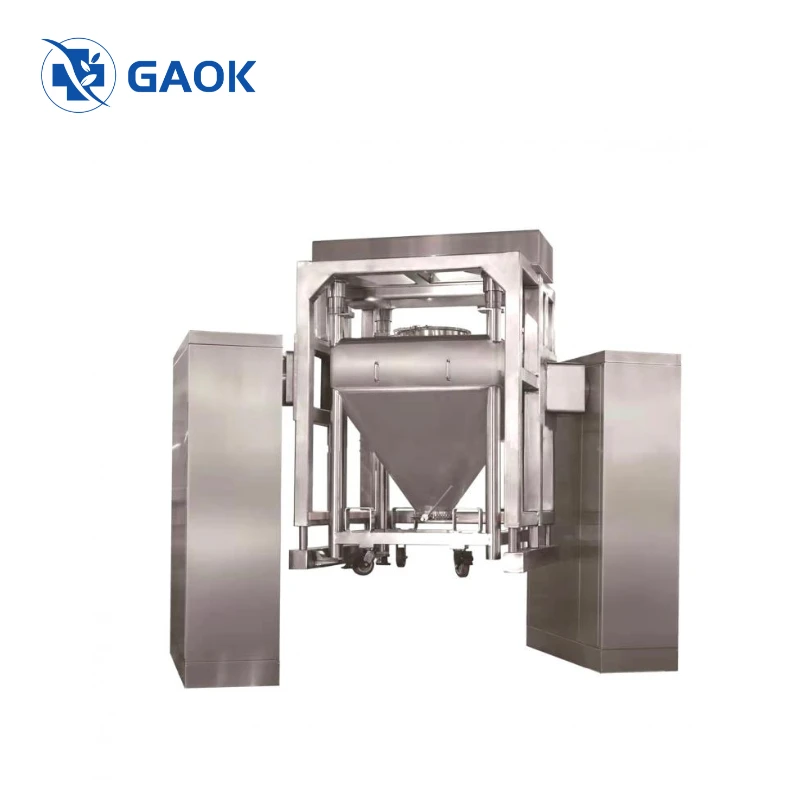

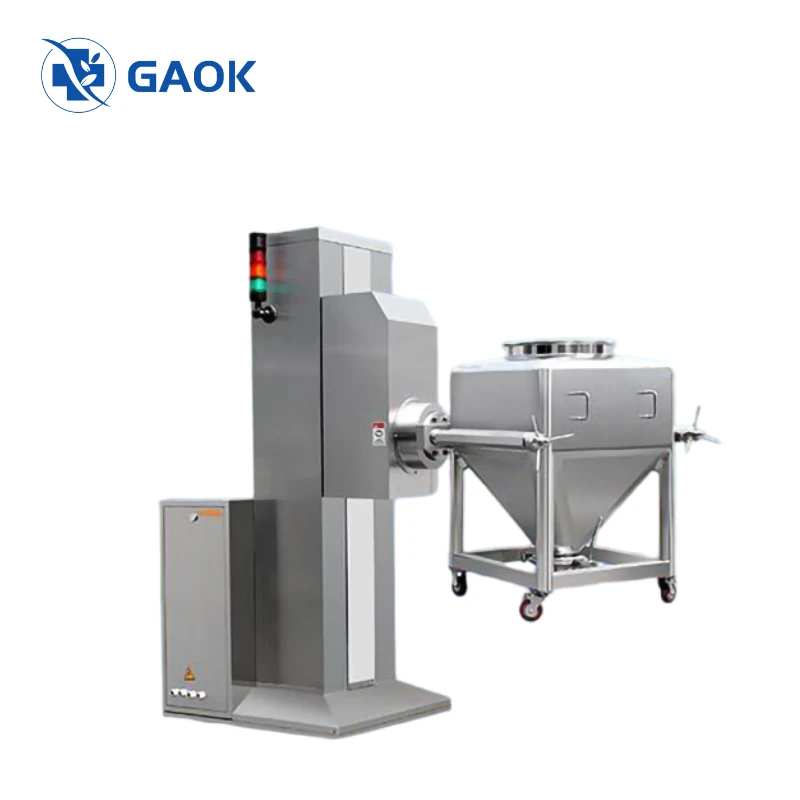

Two Structural Series to Match Your Workshop

	HTD Series	HZD Series
Type	Single-column / cantilever type	Opposed-clamp (twin-support) type
Clamping	Single-end clamping	Double-end opposed clamping
Volume range	50 – 3000 L	400 – 2000 L
Best for	Small-to-large range, low workshop height, wall-mounted (through-wall) installation	Stable large-batch production, high speed, heavy load
Advantage	Compact footprint, low headroom, lower cost	Higher rigidity, smoother running, higher max. speed

Applications

Pharmaceutical - final blending of powder & granules for tablets, capsules and granules; API + excipient blending; ideal for GMP solid-dosage production lines
Food - solid beverages, milk powder, seasonings, spices, food additives, coffee, flour premix
Health care & Nutraceutical - vitamin premix, protein powder, herbal powder, dietary supplements
Chemical - dyes, pigments, detergents, catalysts, fine chemicals, plastic masterbatch
New energy & New materials - lithium battery cathode/anode materials, 3D printing powder, ceramic powder, metal powder
Feed & Veterinary - feed additives, premix, veterinary drug powder
