Product Description

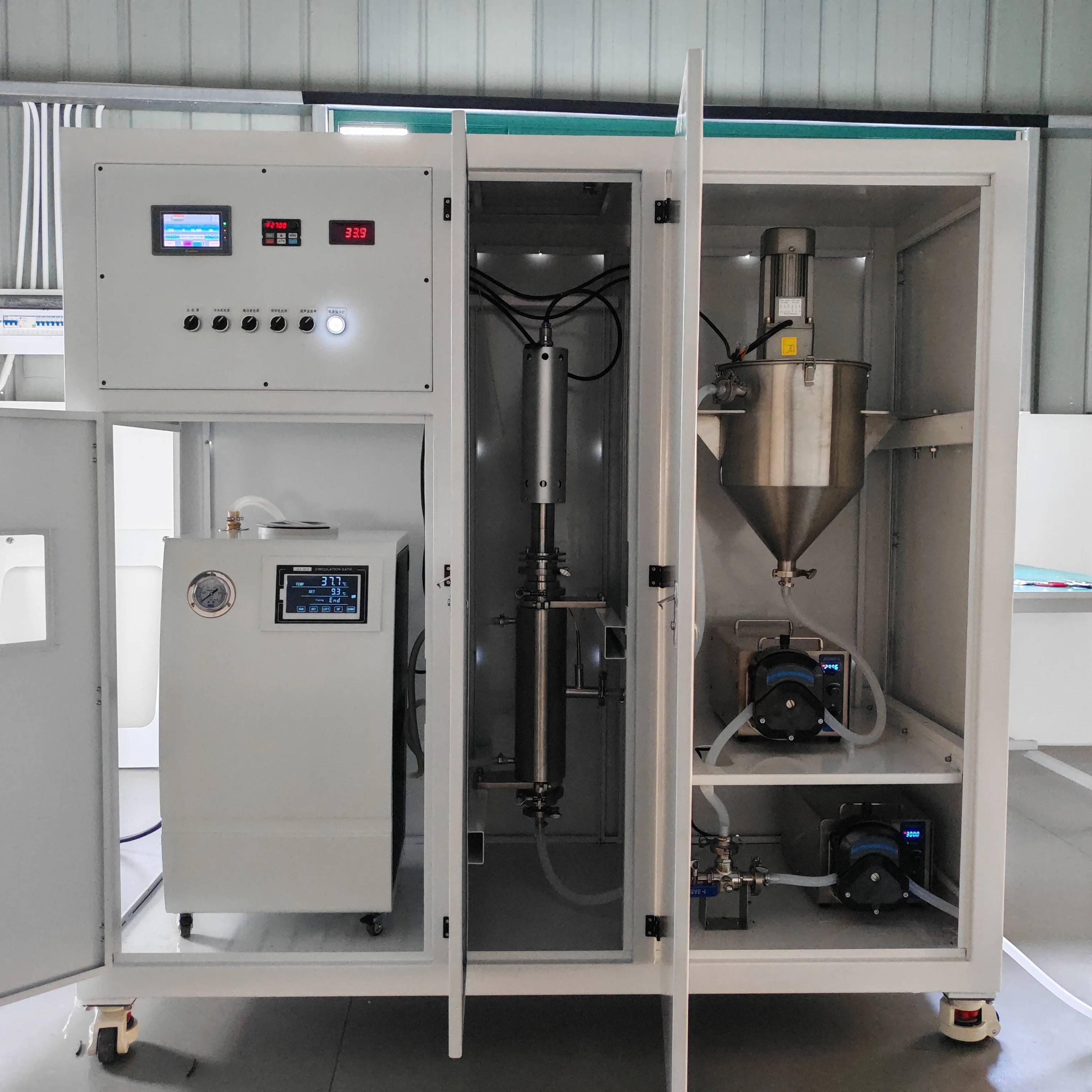

vacuum homogenizer such as Graphene, carbon black, diamond, ceramic slurry, photovoltaic slurry, pulp, cosmetics, etc. This device is equipped with a 3.0kw sonicator, which can refine particles to nanometers with an extremely large amplitude. A chiller can control the liquid temperature, which is very important for temperature sensitive liquids. Two pumps ensure fast and residue free discharge, which is very useful for materials with high viscosity or obvious sedimentation.
vacuum homogenizer
|
Model
|
JH-XH1/20L2BL
|
|
Ultrasonic frequency
|
20kHz±0.5, automatic tracking
|
|
Ultrasonic power
|
≤3.0kW
|
|
Amplitude set
|
50%~100%
|
|
Input voltage
|
220/380V, 50/60Hz
|
|
Tool head diameter
|
37/40/50mm
|
|
Tool head insert length
|
300~480mm
|
|
Tool head material
|
Titanium alloy
|
|
Flow cell material
|
SUS304/316L
|
|
Flow cell volume
|
1.0L
|
|
Flow cell type
|
Vertical double-layer pipeline (equipped with temperature control jacket)
|
|
Mixing tank material
|
SUS304/316L
|
|
Mixing tank volume
|
20L
|
|
Mixing tank type
|
Single layer conical tank
|
|
Agitator speed
|
0~1400rpm
|
|
Agitator power
|
0.37kW
|
|
Pump speed
|
0~500rpm
|
|
Pump flow rate
|
0~12800ml/min.
|
|
Pump power
|
0.4kW
|
|
Chiller temperature range
|
-5℃~room temperature
|
|
Temperature accuracy
|
±2℃
|
|
Chiller working time
|
0~24H, can be set by seconds
|
|
Temperature display
|
0~200℃
|
industrial ultrasonic homogenizer
Make Your Research More Accurate & Efficient
We design and manufacture extraction prodcution line for users in need of a simple device for small amounts of extract, as well as more complex equipment for industrial use. Our offer includes preprocess(dryer /grinder) ,coating machine ,package machine and process systems where the substance used as solvent is either a volatile hydrocarbon (butane extraction), an alcohol (alcohol extraction), or CO2 (supercritical extraction). Given the investment cost, complexity of use, and extract quality, each system has some advantages and disadvantages.
We design and manufacture extraction prodcution line for users in need of a simple device for small amounts of extract, as well as more complex equipment for industrial use. Our offer includes preprocess(dryer /grinder) ,coating machine ,package machine and process systems where the substance used as solvent is either a volatile hydrocarbon (butane extraction), an alcohol (alcohol extraction), or CO2 (supercritical extraction). Given the investment cost, complexity of use, and extract quality, each system has some advantages and disadvantages.
Hot Tags: vacuum homogenizer, China vacuum homogenizer manufacturers, suppliers, factory
