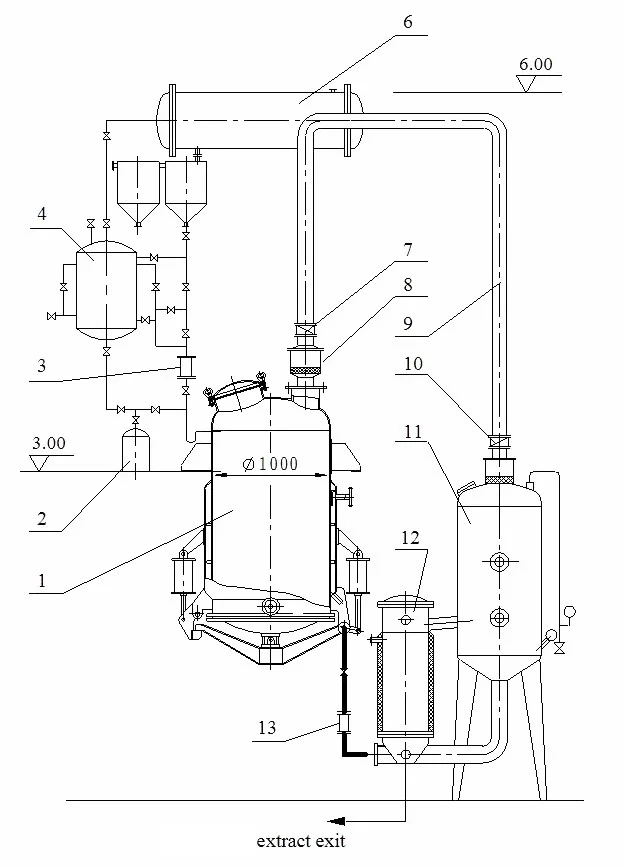

1.Extracting tank
2.Oil or water separator
3.Sight glass
4.Vacuum switcher
5.Cooler
6.Hot backset current condenser
7.Butterfly valve
8.Defoamer machine
9.Reflux pipe
10.Butterfly valve
11.Concentrating Evaporator
12. Heater
13.Sight glass
Traditional Chinese Herb Hot Backset Current Low Temperature Draw ultrasonic assisted extraction Comprehensive Backset Current, Ooze And Filter Drawing, Adverse Current And Hot Backset Current Extraction And Concentrate Four Kinds Of Principles.
Ultrasonic assisted extraction Schematic Diagram
Ultrasonic assisted extraction Main Technical Data
|
Model |
GK-0.1/25 |
GK-0.3/75 |
GK-0.5/125 |
|
The volume of extracting (m³) |
0.1 |
0.3 |
0.5 |
|
The work temperature of extracting and concentrating (°C) |
Water: 50-90°C Alcohol: 40-80°C |
||
|
Raw Material Input Capacity (kg) |
10-15 |
30-45 |
50-70 |
|
Capacity of Concentrating Evaporator |
25kg/hour |
75kg/hour |
125kg/hour |
|
Power of Vacuum Pump |
2.2kw |
2.8kw |
3.5kw |
|
The time of extraction (h) |
6-8 |
||
|
Concentrate density (%) |
1.2-1.35 |
||
FAQ
1.What is suitable material for your machine?
It is suitable for traditional Chinese medicine, plant, animal, food and chemical industries, such as normal
pressure and pressure water decoction, warm extraction, heat reflux, forced circulation, percolation, aromatic oil
extraction and organic solvent recovery process, especially the dynamic extraction or countercurrent extraction
effect is better, short time, high concentration.
2.What solvent does your machine can use?
Water and Organic solvents. It depends on your raw material and request.
3.What is your machine' material?
304/316 Stainless steel.It can be customized according to your request.
4.what capacity do you have?
Production capacity per batch,we supply 0.5L~200L machine for you,big capacity of machine can be customized according to your request for your request.
