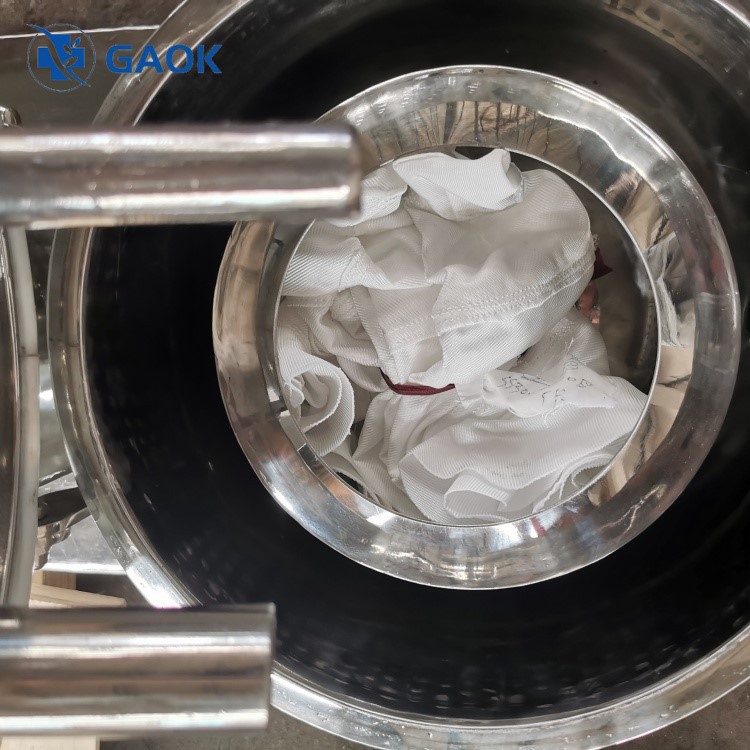

Centrifuge extractor equipment is to extract from dried hemp, and filter out the organic matter and plant debris that are insoluble in ethanol. Centrifuge is the most convenient ethanol extraction solution in extracting industrial hemp. The material is quickly extracted by full contact with ethanol and high speed rotation.
high quality
Advanced Equipment
Professional Team
One-Stop Solution
|
Main parameters |
LXJ-15 |
LXJ-30 |
LXJ-50 |
LXJ-110 |
|
Vessel diameter(inch) |
12 |
18 |
24 |
32 |
|
Vessel volume(L) |
18 |
48 |
110 |
251 |
|
Biomass/batch(lbs) |
15 |
30 |
50 |
110 |
|
Alcohol solvent (L) |
57 |
110 |
201 |
377 |
|
Standard Max speed(r/min) |
3000 |
2000 |
1500 |
1000 |
|
Optional 1: speed |
4000 |
3000 |
2000 |
1500 |
|
Main motor power (kw) |
2.2/3 |
3/4 |
5.5/7.5 |
7.5/11 |
|
Vessel load-bearing (lbs) |
25 |
50 |
100 |
320 |
|
Dimension (L*W*H)mm |
850*610*900 |
980*680*1000 |
1350*990*1300 |
1700*1200*1500 |
|
Machine weight(kg) |
≈300 |
≈500 |
≈800 |
≈1400 |
Equipment details
1. Centrifuge extractor can meet different explosion-proof requirements. Integrated explosion-proof control cabinet, EX external split PLC operation screen optional.
2. Emergency stop button design for emergency shutdown protection.
3. Siemens PLC control system & operation screen. All low-voltage electrical appliances use imported.
4. Variable speed governor for stepless speed regulation of centrifuges, UL inverter optional.
5. CE certified electrical appliances, UL / EN standards available.
6. Spherical crown type flip cover, better strength and rigidity, effectively preventing the impact of flip cover deformation on the sealing performance of the whole machine, moreover, maintenance and cleaning are more convenient. The flip cover is made of plate as a whole, with high rigidity and strength, and smooth surface. Feeding tube, cleaning tube, sight glass, explosion-proof light, etc. are set on the flip cover, the layout is reasonable and beautiful, which is convenient for operation and production.
7. Centrifuge extractor Equipped with explosion-proof lighting and observation glasses, it is more convenient to work. The observation mirror is equipped with a cleaning scraper device, which can be cleaned manually, easy to observe at running time. Stainless steel quick-opening handle, easy to open and lock.
