Product Introduction

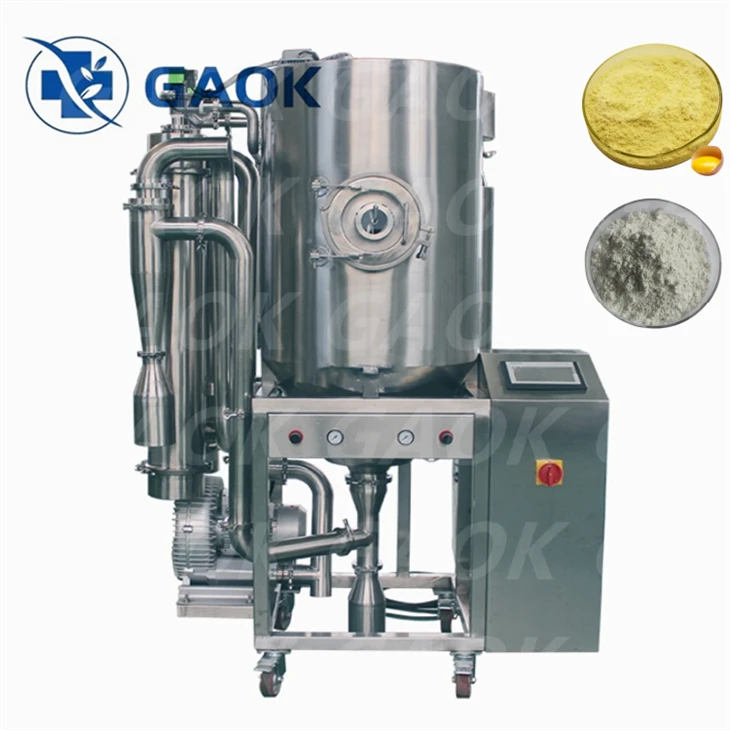

The Chemical Spray Dryer system operates by atomizing the feed liquid into fine droplets, which are then brought into contact with hot air (or inert gas) inside a drying tower. The moisture evaporates almost instantly-typically within seconds-leaving behind a dry powder that is separated from the air stream via cyclones or bag filters.
Technical Specifications
| Model | LPG-5 | LPG-25 | LPG-50 | LPG-100 | LPG-150 | LPG-200-2000 |
|---|---|---|---|---|---|---|
| Water Evap. (kg/h) | 5 | 25 | 50 | 100 | 150 | 200-2000 |
| Inlet Temp (°C) | 140-350 (Auto-Controlled) | |||||
| Outlet Temp (°C) | ~80-90 | |||||
| Spray System | Centrifugal Nozzle | |||||
| Drive | Comp. Air | Mech. | Mech. | Mech. | Mech. | Mech. |
| Rotor Speed (RPM) | 25,000 | 18,000 | 18,000 | 18,000 | 15,000 | 8,000-15,000 |
| Disc Dia. (mm) | 50 | 100 | 120 | 140 | 150 | 180-340 |
| Heat Source | Electric | Elec.+Steam | Elec.+Steam/Fuel/Gas | Custom | ||
| Max. Elec. Power (kW) | 9 | 36 | 63 | 81 | 99 | - |
| Footprint (m) | 1.8x0.93x2.2 | 3x2.7x4.26 | 3.7x3.2x5.1 | 4.6x4.2x6 | 5.5x4.5x7 | Custom |
| Powder Yield | ≥95% | ≥95% | ≥95% | ≥95% | ≥95% | ≥95% |
advantages
The particle size of the powder can be adjusted: By adjusting the atomization parameters (nozzle pressure or centrifugal speed), you can control the particle size (typically 10-150μm) and bulk density. The resulting powder has excellent flowability and uniformity.
High Recovery Rate: Our Chemical Spray Dryer is equipped with efficient separation technology. A primary cyclone separator handles the bulk of the powder, while a secondary bag filter captures fine particles.
Low Sticking: The design of the drying tower-including the hot air distribution and internal surface finish-is optimized to reduce the common issue of powder sticking to the walls.
Product application
Our Chemical Spray Dryer is a versatile tool used across the chemical industry:
- Basic Chemicals: Drying of catalysts, resins, plastics (like PVC/ABS), and ceramic powders.
- Dyes & Pigments: Producing uniform color powders with consistent particle size for textile and coating applications.
- Surfactants & Detergents: Manufacturing laundry detergents and industrial cleaning agents with good solubility.
