Anyang Gaokang Medical Co., Ltd. is one of the most reliable manufacturers and suppliers of benchtop plate centrifuge in China. With a professional production team, we are able to meet the needs of the majority of our customers. Please rest assured to buy premium benchtop plate centrifuge at competitive price from our factory.
Products Description
The benchtop plate centrifuge is top discharging, hermetic closure type equipment. The material is fed into the drum through the feeding pipe on the hermetic closure casing; under the action of the centrifuge force field, the liquid-phase passes through the filter medium and the discharged out of the machine, while the solid-phase material is retained inside the drum and, after the machine is stopped, the material is discharged from the top. The centrifuge has such features as smooth running, easy & convenient operation as well as conducting feeding, washing and dehydrating under the state of hermetic closure, etc.
washing and dehydrating under the state of hermetic closure, etc.

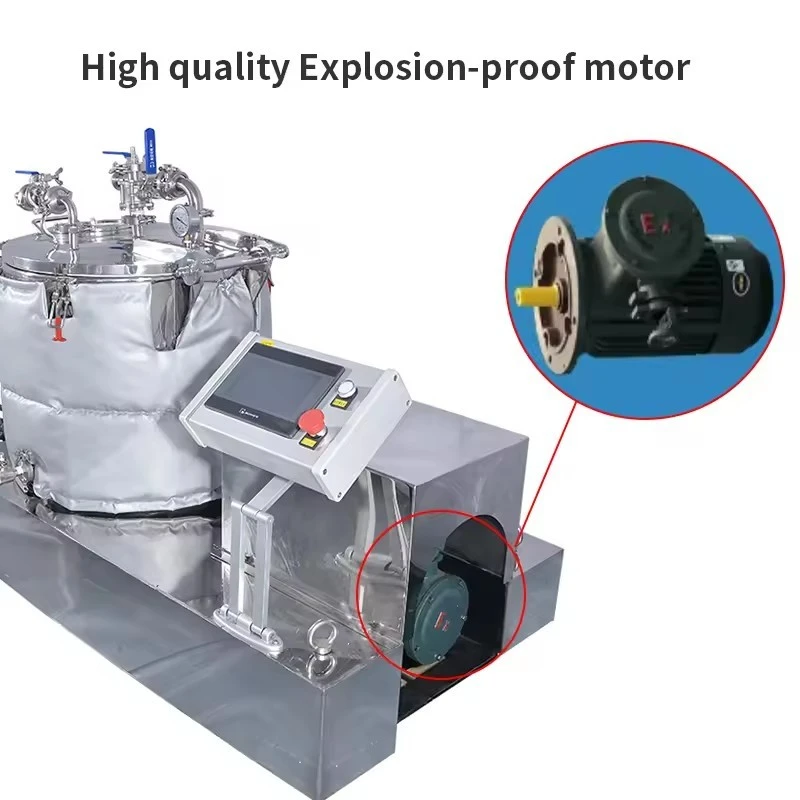

Product detailed pictures
The following benchtop plate centrifuge pictures are for reference:
Working principles
Our benchtop plate centrifuge is to use centrifugal force to accelerate the liquid phase in the solid-liquid mixed liquid out of the rotating drum, and leave the solid phase in the rotating drum, so that the different materials that need to be separated can be accelerated to separate the machine.The operator should fill the filter bag with crushed plant material and places it in the machine. Then, add alcohol until the plant material is submerged. After soaking at low temperature and setting a program to rotate at a low speed in both directions,the active ingredients in the plant are fully extracted. Rotate at high speed and open the bottom discharge valve to discharge the extract.
Specifications
|
Model |
Drum |
Storage capacity (L) | Interlayer capacity (L) | Motor Power (KW) | Power voltage | |||
|
Plant powder (LB/batch) |
Capacity (L) | Diameter (mm) | Rotary speed (rpm) | |||||
| GK-15 | 6.5 | 15 | 300 | 2000 | 30 | 9 | 1.1 |
220V/60Hz Single phase / three phase |
| GK-25 | 11 | 25 | 300 | 2000 | 40 | 12 | 1.5 | |
| GK-45 | 20 | 45 | 450 | 1500 | 85 | 20 | 2.2 | |
| GK-60 |
28 |
60 | 450 | 1500 | 106 | 25 | 3 | |
| GK-110 | 50 | 110 | 600 | 1250 | 175 | 33 | 4 | 220V/60Hz Three phase |
| GK-140 | 65 | 140 | 600 | 1250 | 210 | 40 | 5.5 | |
| PP-250 | 117 | 250 |
800 |
1100 | 380 | 55 | 11 | |
| GK-480 | 225 | 480 | 1000 | 1000 | 748 | 90 | 15 | |
| GK-860 | 413 | 860 | 1250 | 950 |
1250 |
130 | 18.5 | |
FAQ
1.What products does your company have?
--Plant Extraction Equipment
-- Jacketed Glass Reactor
--Vacuum rotary evaporator
--Vacuum drying oven
-- Production line solutions
2.How to order?
--Communicate with our salesman
--Products are in PDF/JPF/Vidio format, free design service for all customers.
--Arrangement of delivery after the balance of payment
--Provide related equipment
--Welcome your second order and more orders in the future.
3.Quality Assurance
--Each board is inspected at least 4 times
--100% inspection before despatch
Packaging and shipping
