Products Description

Conical Spiral Vacuum Dryer is a kind of high efficient vacuum drying equipment, which combines conical design and spiral mixing technology, and is suitable for drying heat-sensitive, flammable and explosive, organic solvent materials, as well as powder, granule, paste and viscous materials. This equipment is especially suitable for occasions where drying is required at low temperatures and where the quality of the materials in the drying process is highly demanded.

agitated vacuum dryer

Main features:
1. High drying efficiency
2. Fully closed system no foreign matter pollution, high cleanliness
3. Low-temperature drying at low temperature under vacuum, effectively protecting heat-sensitive materials.
4. High mixing efficiency with unique spiral mixing method
5. Simple operation, easy maintenance
6. low operating energy cost, low energy consumption
7. Can handle flammable and explosive materials

Application areas

uht

- Pharmaceutical industry: drying of active pharmaceutical ingredients to ensure the stability of drug components.
- Food industry: drying food additives and nutrients to protect the quality and safety of food.
- Chemical industry: Processing chemical raw materials and fine chemicals to enhance the stability and quality of products.
- Biotechnology: drying enzymes and proteins to maintain biological activity.
- Ceramic Industry: Ensure the quality and consistency of ceramic powders and materials .

Working Principle:
The conical spiral vacuum dryer heats up and dries the material through the heating jacket and the propeller's internal heat supply, so that the heat supply area reaches 140% of the whole container area. Materials in the conical cylinder forced heating, relative convection, mixing, heat diffusion in the material, so that the material for a full range of irregular reciprocating motion, complete the material with a single screw belt and the cylinder wall surface of the high-frequency heat transfer and exchange, in a short period of time to achieve heating and drying effect.

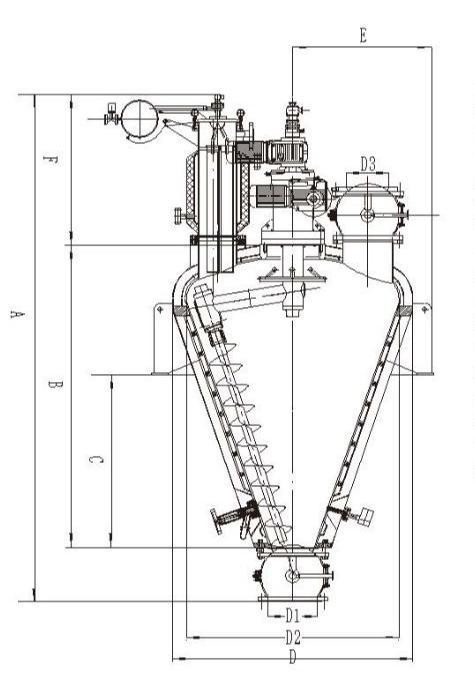

Structural composition:
Mainly consists of motor, reducer, frame, mechanical seal, metal sintered mesh filter, hollow double-screw belt agitator, cone-shaped cylinder with jacket heating and discharge valve and other components.

Technical parameters

Volume	Diameter	Motor Power	Net Weight	Height
150L	800mm	5kw	550kg	2500mm
500L	1000mm	7.5kw	950kg	3000mm
1000L	1200mm	11kw	1500kg	3750mm
1500L	1300mm	15kw	1850kg	4500mm
2000L	1500mm	18.5kw	2750kg	4200mm
3000L	1600mm	22kw	3900kg	4500mm
4000L	1900mm	30kw	4500kg	4800mm
5000L	2100mm	37kw	5150kg	5200mm

- Available volume: from 100 to 12,000 liters.
- Filling volume: 10-100% of the total workload can be achieved.
- Drive energy consumption: Low drive energy consumption compared to other systems.
- Special options: e.g. shorter drying times with heated screws, mechanical seals for empty runs, etc.
