Product Description
We engineer our algae oil separation machine for the toughest liquid-liquid and liquid-solid separations – particularly where particle size is small and density differences are minimal. These machines achieve the highest G-forces in our lineup, making them ideal for concentrating microalgae, extracting intracellular oils, and clarifying sensitive bioproducts.

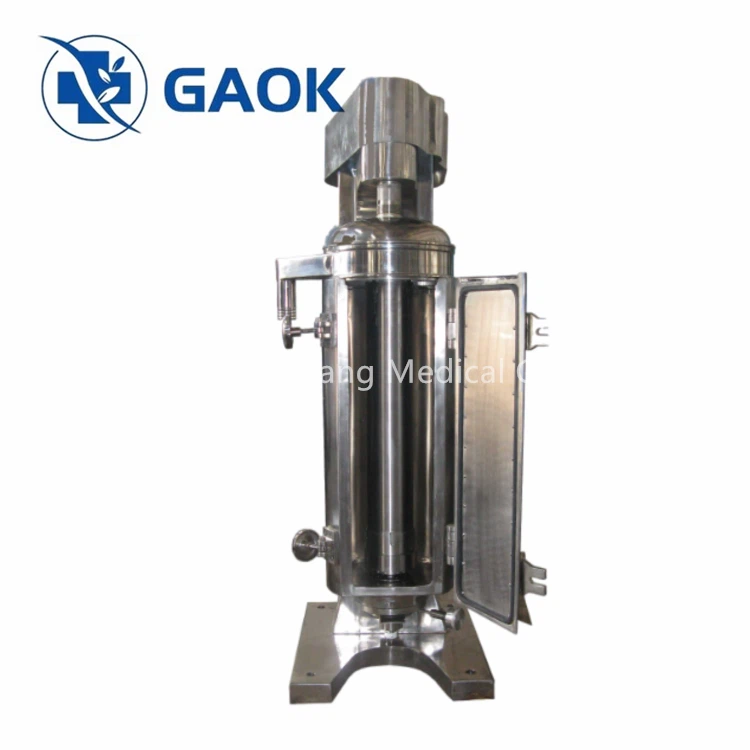

The algae oil separation machine consists of a slender cylinder that rotates at an extremely high speed, creating a very powerful centrifugal force field. The material enters from the bottom, and the heavier solid substances (such as cell fragments) are thrown towards the outer wall of the cylinder, while the lighter liquids (oil and water phases) form concentric layers and are discharged through separate outlets. The rate of solid discharge can be precisely controlled, enabling continuous operation.
parameters
| Model | GF/Q45 | GF/Q75 | GF/Q105 |
| Bowl diameter | 45 mm | 75 mm | 105 mm |
| Effective height in bowl | 280 mm | 430 mm | 730 mm |
| Settling volume in bowl | 0.45 L | 2 L | 5.5 L |
| Bowl speed | 0-28000 r/min | 20000 r/min | 16000 r/min |
| Max separation factors | 0-19800 | 20000 | 15025 |
| Nozzle diameter | 2.3 mm | 2.3.5 mm | 4.6.8.10 mm |
| Inlet pressure | >0.05 Mpa | >0.05 Mpa | >0.05 Mpa |
| Throughput | ≈100 kg/h | ≈500 kg/h | ≈1200 kg/h |
| Motor type | Series motor | Y90S-2 | Y90S-2 |
| Motor power | 0.6 kw | 1.5kw | 2.2 kw |
| Motor speed | 0-4500 r/min | 2840 r/min | 2880 r/min |
| Size | 580*650*750 mm |
800*400*1200 mm | 800*700*1400 mm |
| Weight | 120Kg | 300Kg | 400Kg |
Typical Workflow
The Following is the Algae Oil Separation Machine Typical Workflow:
- Harvesting: Concentrate dilute algae broth into a thick paste.
- Cell Disruption: Process lysed cell slurry to separate oil, biomass, and aqueous phases.
- Oil Washing & Polishing: Refine crude algae oil by removing residual water and solids.
application
Our Algae Oil Separation Machine is applied in the following fields:
1.Microalgae Dewatering & Harvesting: Recovering Chlorella, Spirulina, or Nannochloropsisfrom cultivation broth with minimal cell rupture
2.Intracellular Oil Separation: Clarifying lysed algae slurry to separate lipids, proteins, and cellular debris
3.High-Value Lipid Recovery: Isolating omega-3 (EPA/DHA), astaxanthin, or other lipid fractions from complex emulsions
4.General Bio-Clarification: Removing fine solids from sensitive enzymes, vaccines, or other bioproducts
