Products Description

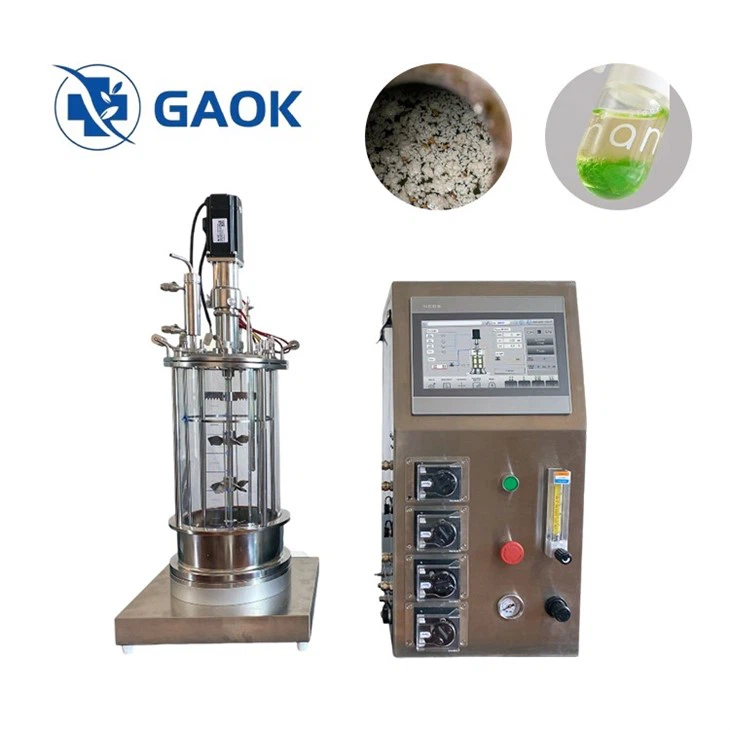

This series of Lab scale fermenter can be used for the cultivation of microorganisms, yeast or fungi, mammals, animal / plant cells and insect cells, etc., meeting the requirements of basic research and development or the establishment of laboratory platforms for biopharmaceuticals.rich experience for scaling up benchtop fermentors to processing system, and excellent control system for temperature, rpm, PH, DO, antifoam, feeding, aeration and pressure, you will benefit from our turnkey solution service.
Products Parameter
| Model | Gk-0.25 | Gk-0.5 | Gk-1 | Gk-2 | Gk-3 | Gk-5 | Gk-10 | Gk-15 |
| Liquid filling coefficient | 65-80%, 70% is the best | |||||||
| Total volume | 0.5L | 0.8L | 1.2L | 2.8L | 3.7L | 6.5L | 12.8L | 18L |
| Working volume | 0.25L | 0.5L | 1L | 2L | 3L | 5L | 10L | 15L |
| Stirring method | Mechanical stirring | |||||||
| Stirring speed range | 50-1000rpm | |||||||
| Impeller | Multistage impeller | |||||||
| Heating method | Chassis heating/silicone tape heating | |||||||
| Temperature range | Room temperature +5~75ºC | |||||||
| Measurement | Temperature, PH, DO, Defoaming | |||||||
| Peristaltic pump | 4 Adjusting PH (acid/alkali), deform, feeding | |||||||
| Vessel | GG-17&316L | |||||||
| Sterilization | In autoclave | |||||||
| Voltage | 220V/110V | |||||||
Structure & Working principle
The Lab scale fermenter(cell bioreactor) working principle is mainly based on providing the appropriate environment and nutrients, and promoting the growth and metabolic process of microorganisms by controlling the parameters of gas concentration, pH value, temperature and agitation in the tank, so as to produce the required products.
Features
Lab scale fermenter Competitive advantage
Temperature adopts digital setting and display, easy to operate, high precision of temperature control.
High borosilicate glass has good physical and chemical properties.
Can be used in wideemperature range from high temperature (300ºC)to low temperature(-80ºC).
Can work in constant pressure and vacuum, vacuum degree is below 0.095MPa in quiet situation.
Digital display of mixing speed, , frequency conversion, and constant speed mixing system, work steadily.
The sealing me thod and materials between mixer shaft ,PTFE mixing propeller (paddle),and ketttle cover are Know-how of our company.
Corrosion resistant discharge valve is without dead space design.
The cooling or heating solution in the interlayer can be completely removed after reaction.
The whole structure is novelty, practical and beautiful.
Application
