Products Description

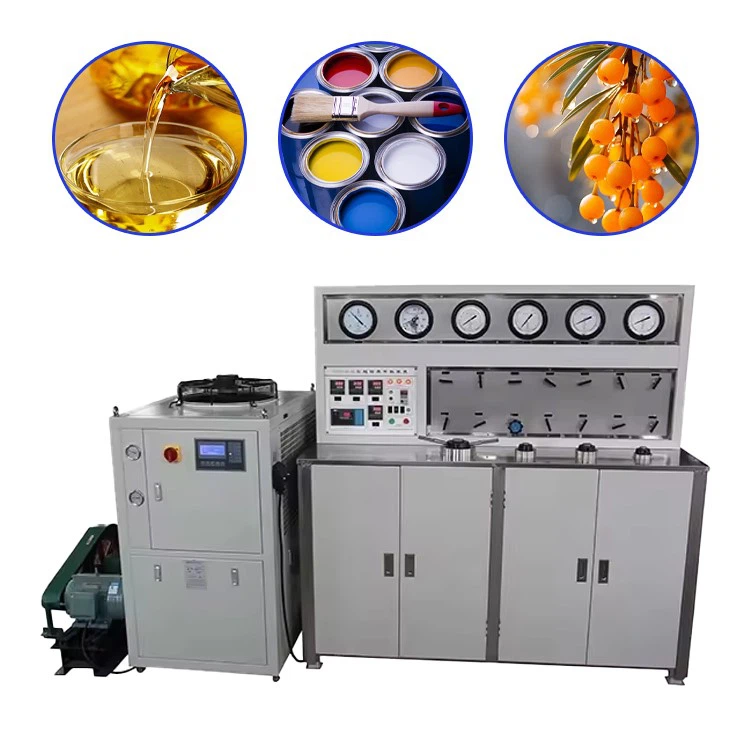

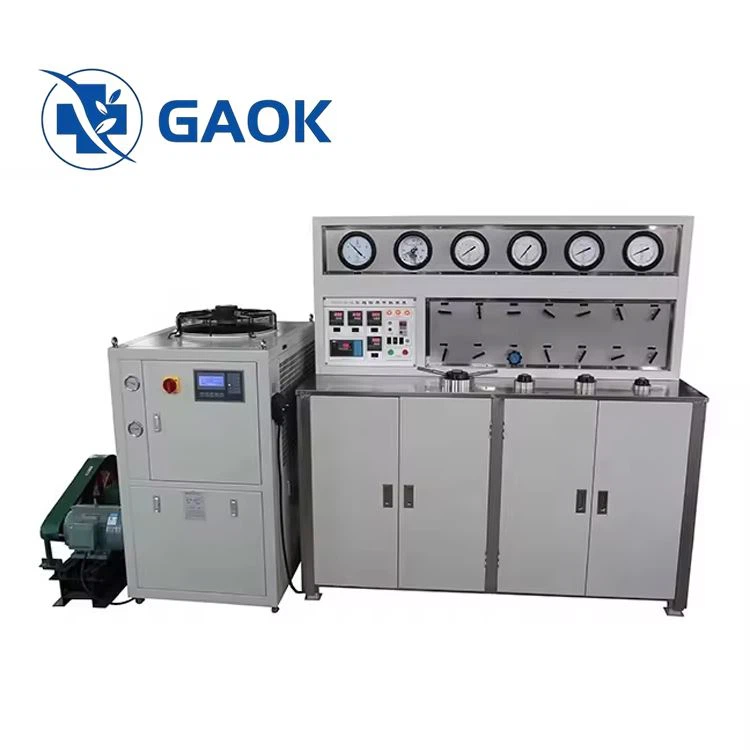

Supercritical CO2 equipment takes CO2 as the solvent to make extraction and purification up on a lot of products such as biological products, foodstuff and medicines.Supercritical CO2 equipment can be extracted at near normal temperature without destroying biological active substances, especially suitable for the separation, extraction of heat-sensitive and easily oxidized substances.
The extract has no residual solvent, so it is called "100% natural". Extraction process parameters of supercritical CO2 equipment are easy to adjust and control, and the products have high yield. Little extraction procedure, simple process, high efficiency and low energy consumption.CO2 is cheap and easy to use, non-toxic and tasteless, not producing "three wastes", pollution-free and "environmentally friendly".
Main Configurations
| Extraction kettle | Separation kettle | Commingler |
| CO2 high-pressure pump | Entrainer pump | Refrigeration system |
| Heat exchange system | CO2 storage tank | CO2 level gauge |
| Purification system | Flow meter | Temperature control system |
| Safety protection system, etc | ||
Technical Parameters
| Model | Extraction capacity | Pressure | Combining form |
| GKSFE-100 | 50L×2 | 400bar | Two extracting pot-two separating pot circulation mode. |
| GKSFE-100 | 50L×2 | 400bar | Two extracting pot-two separating pot one rectifying column circulation mode. |
| GKSFE-150 | 50L×3 | 400bar | Three extracting pot-two separating pot circulation mode. |
| GKSFE-200 | 50L×4 | 400bar | Four extracting pot-two separating pot circulation mode. |
| GKSFE-200 | 100L×2 | 400bar | Two extracting pot-two separating pot circulation mode. |
| GKSFE-300 | 50L×6 | 400bar | Six extracting pot-three separating pot circulation mode. |
| GKSFE-300 | 100L×3 | 400bar | Three extracting pot-two separating pot circulation mode. |
Product Applications
