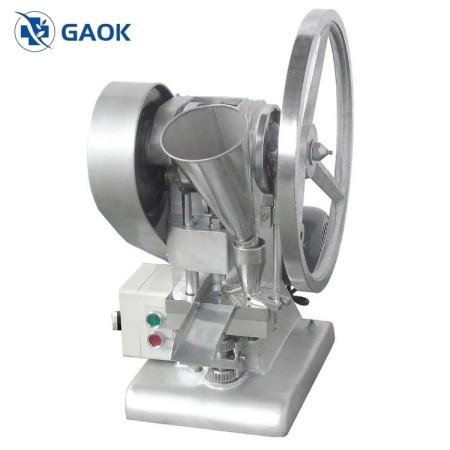

Pill Compressor Machine

The main working element of the pill compressor machine is the punching die, which includes three parts: the upper punch, the middle die and the lower punch. The working process is as follows:
1. The punch part of the lower punch extends into the middle die hole from the lower end of the middle die hole and seals the bottom of the middle die hole.
2. Fill the hole of the middle mould with drugs by using the feeder.
3. The punch part of the upper punch falls into the hole of the middle mould from the upper end of the hole of the middle mould and travels down for a certain stroke to press the medicine powder into tablets.
4. The upper punch lifts out of the hole, and the lower punch rises to push the tablets out of the hole of the middle die, completing the process of pressing tablets once.
5. The lower punch descends to the original position, ready for the next filling.

Classification by structure: It includes single punch tablet press and rotary tablet press. Single punch tablet presses are suitable for small batch production and laboratory research and development, while rotary tablet presses are suitable for large batch production.
Classification according to application: including general pill compressor machine, coating tablet press and double-layer tablet press.
Classified according to the number of times tablets are pressed: including single presses and multiple presses.

High efficiency: The pill compressor machine can continuously and uninterruptedly carry out tablet pressing operation to improve the production efficiency.
Precision: Through setting parameters and control system, the pill compressor machine can achieve accurate tablet pressing operation and ensure stable product quality.
Versatility: The pill compressor machine can be adjusted according to different requirements and is suitable for the production of a variety of products with different specifications.
High degree of automation: the whole working process of the automatic pill compressor machine is completely controlled by the machine automatically, which reduces manual intervention and the possibility of human misoperation.
