Product Description

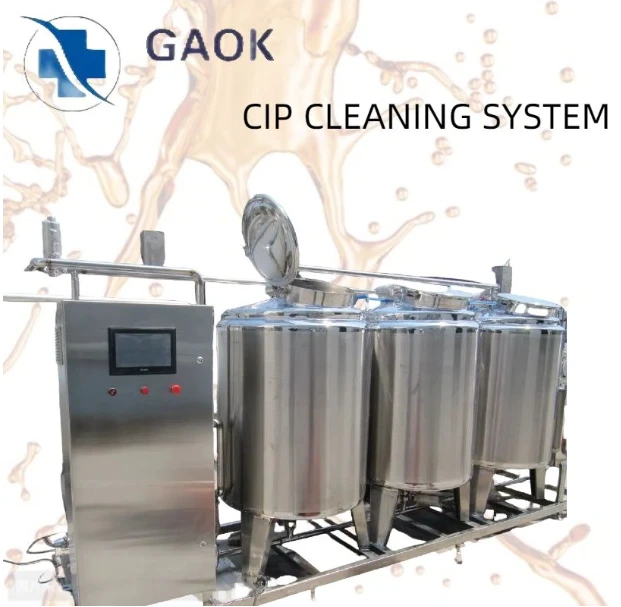

CIP in pharmaceutical industry, CIP (Clean-In-Place) systems enable efficient and safe cleaning of equipment via automated cyclic rinsing without the need for dismantling. This approach not only ensures the hygiene of the equipment and the quality of the products but also adheres to GMP (Good Manufacturing Practice) standards.

cip industry

Key components

1. The cleaning fluid storage tank serves as a reservoir and mixer for cleaning fluids, which generally consist of lye, acid, and water.
2. Cleaning pumps convey the cleaning fluid to the equipment that needs cleaning, ensuring the fluid circulates effectively.
3. The heat exchanger adjusts the temperature of the cleaning fluid to maintain optimal cleaning conditions.
4. Valves and piping systems direct the flow of cleaning fluid to ensure it reaches all areas requiring cleaning.
5. The control system, which is a PLC (Programmable Logic Controller), automates the cleaning process by setting and monitoring parameters such as cleaning time, temperature, and pressure.
6. Sensors monitor real-time parameters like the temperature, pH, and conductivity of the cleaning fluid to ensure effective cleaning.

cip structure

CIP in the pharmaceutical industry

CIP in pharmaceutical industry, CIP (Clean-In-Place) systems are widely employed for cleaning various types of equipment, such as reactors, storage tanks, and conveying pipelines. Here are some key applications of CIP in this sector:

1. Cleaning of Reactors: Reactors are essential pieces of equipment in pharmaceutical manufacturing. CIP systems can perform a thorough cleaning of their internal components, effectively removing any leftover reactants and by-products to prevent cross-contamination.

2. Cleaning of Tanks: Tanks are utilized for storing different materials during the pharmaceutical process. The CIP system helps maintain the cleanliness of these tanks, thereby reducing the risk of contamination during storage.

3. Cleaning of Conveying Pipelines: Conveying pipelines play a crucial role in transporting materials throughout the pharmaceutical process. CIP systems can clean the interiors of these pipelines, eliminating residue and ensuring the smooth flow of materials while upholding hygiene and safety standards.

Advantages of CIP in pharmaceutical industry

1. Enhance production efficiency: Automated cleaning systems reduce manual operation time and shorten the cleaning cycle, leading to enhanced efficiency.
2. Ensuring product quality: Precisely controlling the cleaning parameters guarantees the cleanliness of the equipment and thus ensures the quality of drugs.
3. Meet the requirements of GMP: the design and operation of CIP system is in line with the Good Manufacturing Practice (GMP), which is convenient for enterprises to pass the certification.
4. Reduce environmental pollution: reduce the use of chemical substances in the cleaning process and emissions, in line with environmental requirements.
