Anyang Gaokang Medical Co., Ltd. is one of the most reliable manufacturers and suppliers of cell culture incubator in China. With a professional production team, we are able to meet the needs of the majority of our customers. Please rest assured to buy premium cell culture incubator at competitive price from our factory.
Products Description

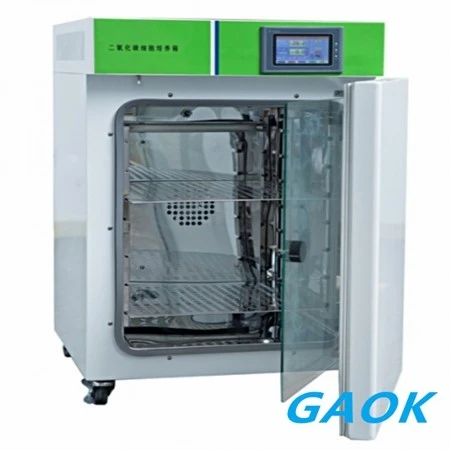

Cell culture incubator is designed to meet the needs of modern industrial and academic cell culture laboratories.
The use of cell culture incubator requires strict compliance with operating procedures and precautions. Such as the correct setting of temperature, humidity and gas parameters, regular cleaning and disinfection, as well as quality control and testing.
Product Structure
Product Parameters
Cell Culture Incubator Specifications:
| Drive Mode | Track balanced-drive type | ||
| Circulation Mode | Forced convection | ||
| Model | JX 2021R (187L) | JX 2022R (156L) | JX 2023R (273L) |
| Speed Range | 30~300rpm (When three layers are stacked, the maximum speed of the top layer is 250rpm) | ||
| Speed Accuracy | ±1 rpm | ||
| Orbit / Stroke | Dia. 25mm (50mm is optional) (Orbital / Reciprocating switchable is for JX 2022R ONLY) | ||
| Programming Function | Programing of repetition, steps and eight curves settings | ||
| Safety Functions | Speed storage, automatic shutdown, temperature and speed correction, monitoring timer, clock display, call recovery, parameter memory, parameter encryption, one-key reset | ||
| Additional Functions | Watchdog timer, independent excess speed sound/light alarm, independent electric leakage, leakage/surge protection device | ||
| Timing Range | 0 – 999h59mins / continuous | ||
| Temperature Range | 4°C-60°C (ambient temperature -15°C, minimum 4°C) | ||
| Temperature Accuracy | ±0.1°C (Constant temperature) | ||
| Temperature Uniformity | ±0.5°C at 37°C | ||
| Temperature Recovery Time | ≤±10mins | ||
| Ambient Temperature Range | 18-34°C | ||
| Humidity Control | Ambient ~ 95%RH | ||
| CO2 Control Range | 0.1-20% | ||
| CO2 Control Accuracy | 0.001 | ||
| CO2 Stability | ±0.1% | ||
| CO2 Accuracy | ±0.3% | ||
| CO2 Sensor | Infrared (IR) sensor high temperature resistance | ||
| HEPA Filter | The incoming gas is sterilized by the 0.2um online filter | ||
| Sterilization Method | UV sterilization | ||
| Concentration Recovery Time | ≤5mins to open the door for 30S | ||
| Heating Power | 800W | ||
| Cooling Power | 200W | ||
| Power Supply | AC 220V±10%, 50/60 Hz; 110V±10%, 60Hz(External transformer for 2022R) | ||
| Maximum Capacity | 250ml×40 or 500ml×28 or 1000ml×15 or 2000ml×12 | 250ml×25 or 500m×16 or 1000m×9 or 2000ml×5 or 5000ml×4 | 250ml×60 or 500ml×40 or 1000ml×28 or 2000ml×15 or 5000ml×7 |
| Size of shaking Plate | 780×500mm | 480×440mm | 940×530mm |
| Inner Size | 850×570×430mm | 580×520×560mm | 1030×590×450mm |
| External Size | 1200×800×640mm | 710×900×810mm | 1410×830×660mm |
| Net Weight | 325kg | 235kg | 370kg |
Features
Cell Culture Incubator
Stackable as single deck, double deck or triple deck.
Humidity control: ambient ~ 95%RH.
Unique single-axis balanced drive patented technology, no noise, no deviation, less energy consumption, good coordination.
7-inch true-color touch screen, multi-group data display, Chinese and English display optional.
Intelligent PID control, fast heating speed, high precision, multi-stage programming control.
Originally imported high-precision CO2 infrared sensor, the control accuracy is ± 1%, and the sensor is resistant to high temperature.
Advanced refrigeration technology, low energy consumption, higher control precision.
Servo motor, forward and reverse, large torque, low noise, more precise control;
Accurate CO concentration control, scalable humidity and light control.
With three-level authority level control and log query to improve security and traceability; with scheduled operation function, timing function and call memory function; with screen lock function to avoid human touch operation errors.
Operation log query to improve the safety and traceability of experiments.
With real-time curve viewing and historical data storage and export functions, it can store 15 million or more than 5 years of data.
Built-in printer and USB interface.
The working chamber is made of 304 stainless steel electroplating material, and the arc corners are easier to clean.
Streamlined and luxurious overall machine shape rich in aesthetic design concept, mold design and manufacturing process.
Optional: built-in blackout curtain, free stretching, completely dark.
Optional: For micro-well plates and deep-well plates, the amplitude is 3mm, and the rotation speed is 800-1000rpm, which can obtain the maximum oxygen transfer.
Optional: scalable lighting, humidity control, remote communication monitoring, mobile APP.
