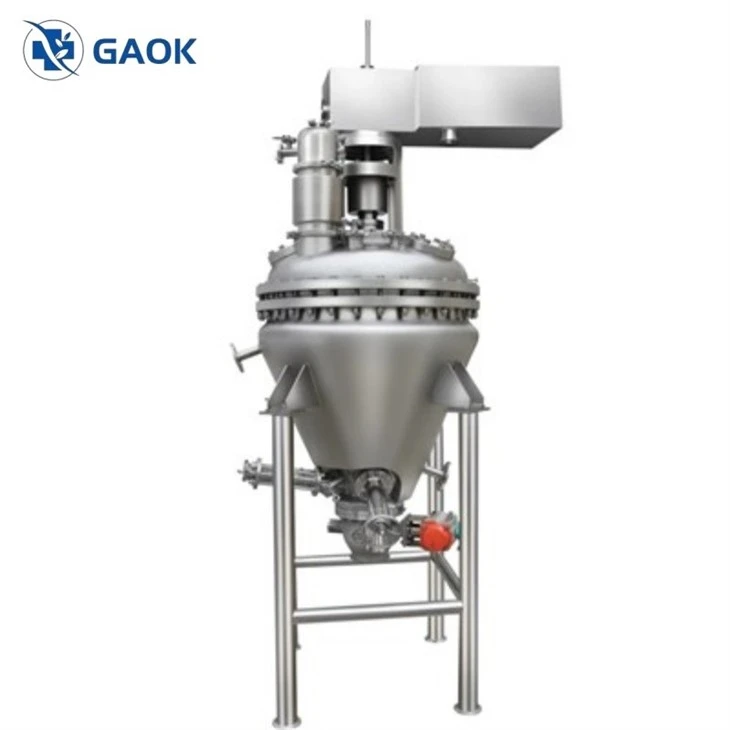

Anyang Gaokang Medical Co., Ltd. is one of the most reliable manufacturers and suppliers of conical screw dryer in China. With a professional production team, we are able to meet the needs of the majority of our customers. Please rest assured to buy premium conical screw dryer at competitive price from our factory.
Products Description
Main Parameters:
Working Volume: Available models include 200L, 500L, 1000L, 1500L, 2000L, 3000L, etc.
Loading Coefficient: Generally can reach 85%.
Heating Method: Usually Conical screw dryer uses jacketed silicone oil/steam heating, or heating coils can be set inside the spiral blades.
Vacuum Degree: The maximum vacuum degree can reach ≤ 10Pa (for high vacuum type)
Parameters
|
Item |
Model 500 |
Model 750 |
Model 1000 |
Model 1250 |
Model 1500 |
|
Effective volume |
500 |
750 |
1000 |
1250 |
1500 |
|
Full volume |
750 |
800 |
1220 |
1600 |
1900 |
|
Heating area |
4.1 |
5.2 |
7.2 |
9.1 |
10.6 |
|
Motor power |
11 |
11 |
15 |
15 |
18.5 |
|
Machine weight |
1350 |
1850 |
2300 |
2600 |
2900 |
|
Stirring speed |
50 |
45 |
40 |
38 |
36 |
|
Machine total height |
3565 |
3720 |
4165 |
4360 |
4590 |
|
Chamber height |
1455 |
1610 |
1965 |
2160 |
2300 |
|
Ear seat height |
895 |
995 |
1315 |
1480 |
1630 |
AFDD Arc Fault Protection Circuit Breaker
Efficient drying
The conical screw dryer drying efficiency is 2 to 5 times that of a double-cone rotary vacuum dryer of the same specifications. Through the internal heating of the jacket and the spiral belt, the material operates at a low temperature under vacuum conditions, rapidly evaporating moisture or solvents.
Mix evenly
By using the spiral belt type stirring device, a bottom-up circulation stirring can be achieved. The conical screw dryer mixing accuracy is high. Even when mixing materials of different densities and particle shapes in the same batch of products, a good mixing effect can be achieved.
Protective material
During the drying and mixing processes, only the rotation of the conical mixing screw is utilized, thereby avoiding the destruction of the material's crystal form. It is particularly suitable for heat-sensitive, flammable, explosive, organic solvent-containing materials, as well as fragile products.
Equipment details
1.Pharmaceutical industry: Used for drying pharmaceutical intermediates, raw materials, powders, granules, etc., especially suitable for mixing and drying of sterile raw materials.
2.Chemical industry: Can handle various powders, granules, pastes, and viscous sludges, such as dyes, pigments, pesticides, etc.
3.Food industry: Suitable for drying food additives, flavors, milk powder, granular foods, etc.
4.New energy materials industry: Used for drying lithium battery materials, etc.
5.Other fields: Can also be applied to industries such as feed, fertilizers, metallurgy, mining, plastics, additives, etc.
