Equipment Description

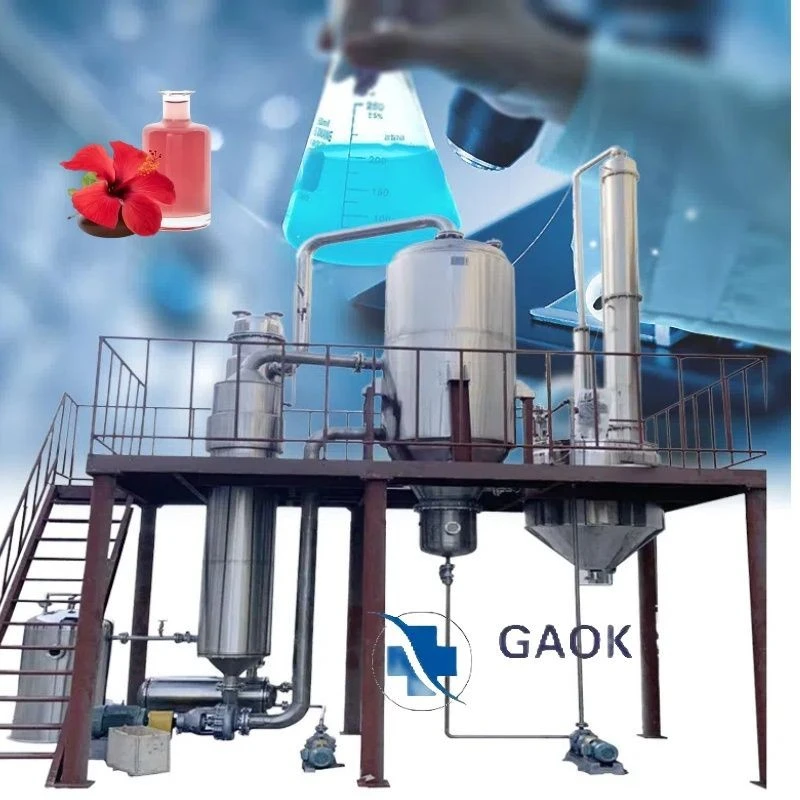

As a leading manufacturer of pharmaceutical and botanical processing equipment, we proudly present our GK Series industrial extraction systems-precision-engineered solutions that transform extraction operations across industries.

plant essential oil extraction

Technical Specifications

The following Industrial extraction systems parameters are for reference. Customization is available.

Model	TQ-500	TQ-1200	TQ-2000	TQ-3000	TQ-4000	TQ-6000	TQ-8000	TQ-10000
Volume (L)	600	1200	2300	3200	4300	6300	8500	11000
Design pressure in tank(Mpa)	0.09
Jacket design pressure(Mpa)	0.3
Manhole diameter (mm)	400	400	400	500	500	500	500	500
Heating area(m2)	1.7	3	4.7	6.3	8	12	14	16
Condensation area(m2)	4	5	8	10	15	20	25	30
Cooling area(m2)	0.5	1	1	1.5	2	2	3	4
Slag door diameter(mm)	500	800	800	800	1000	1400	1400	1600
Steam consumption(kg/h)	160	245	325	345	430	645	720	850
Water consumption(T/h)	6	8	10	15	20	25	30	40
Motor Power(KW)	2.2	3.0	4.0	5.5	5.5	7.5	11	15
Stirring speed(r/min)	36	36	36	36	36	36	36	36

advantages

Our Industrial extraction systems have the following main features：

Precision Temperature Management: With a generous heating surface (up to 8 m² on the TQ-4000) and integrated cooling zones, the system enables rapid thermal cycling-critical for preserving heat-sensitive compounds.

Uniform Mixing at Low Shear: All models operate at a low, steady agitation speed (36 r/min), ensuring thorough mass transfer without damaging delicate matrices.

Efficient Utility Use: Steam and cooling water consumption are optimized per model, reducing operational costs while sustaining high thermal exchange rates.
