Name: China Fluid Bed Coater Manufacturers, Suppliers, Factory - Good Price Fluid Bed Coater - Gaokang Technology
Brand: Gaokang
SKU: 255627822

Product Description

The Fluid Bed Coater is modular and scalable, built to handle the entire coating process-from spraying and fluidizing to drying-in a single, closed unit.

fluid bed dryer price

Technical Specifications

item		unit	Model
item		unit	3	5	15	30	60
Raw material tank	volume	L	12	22	45	100	220
Raw material tank	diameter	mm	300	400	550	700	1000
Output capacity	min	kg	1.5	4	10	15	30
Output capacity	max	kg	4	6	18	36	72
fan	air quantity	m3/h	1000	1200	1400	1800	3000
	Air pressure	mmH2O	375	375	480	480	480
	power	kw	3	4	5.5	7.5	11
steam consumption		kg/h	15	23	42	70	141
compressured air consupmtion		m3/min	0.6	0.6	0.6	0.9	0.9
weight		kg	250	300	700	900	1100
steam pressure		Mpa	0.3~0.6
temperature		ºC	room temperature -120ºC,adjustable
Working time		min	according to material feature45~90
Receiving rate		%	≥99
noize		dB(A)	fan and main frame installed separately, noise≤75dB(A)

advantages

Engineered for Control and Consistency: The Fluid Bed Coater makes every particle receives uniform exposure to the coating spray. Combined with a receiving rate of ≥99%, you get maximum material yield and minimal waste.

Scalable and Adaptable: From the compact 3L R&D model to the robust 60L pilot-scale unit,meet different production scales

User-Centric Design: The main processing chamber and product container are designed for quick assembly and thorough cleaning, minimizing downtime between batches.

application

Our Fluid Bed Coater Ideal for:

Pharmaceutical Excellence

Engineered for GMP compliance, our coaters produce consistent film coatings for controlled release pellets (e.g., HPMC), taste masking layers, and stability-enhancing barriers.

High-Tech Materials

Achieve uniform, high-purity coatings critical for electronics (e.g., silicon deposition) and functional materials like catalysts or coated metal oxides.

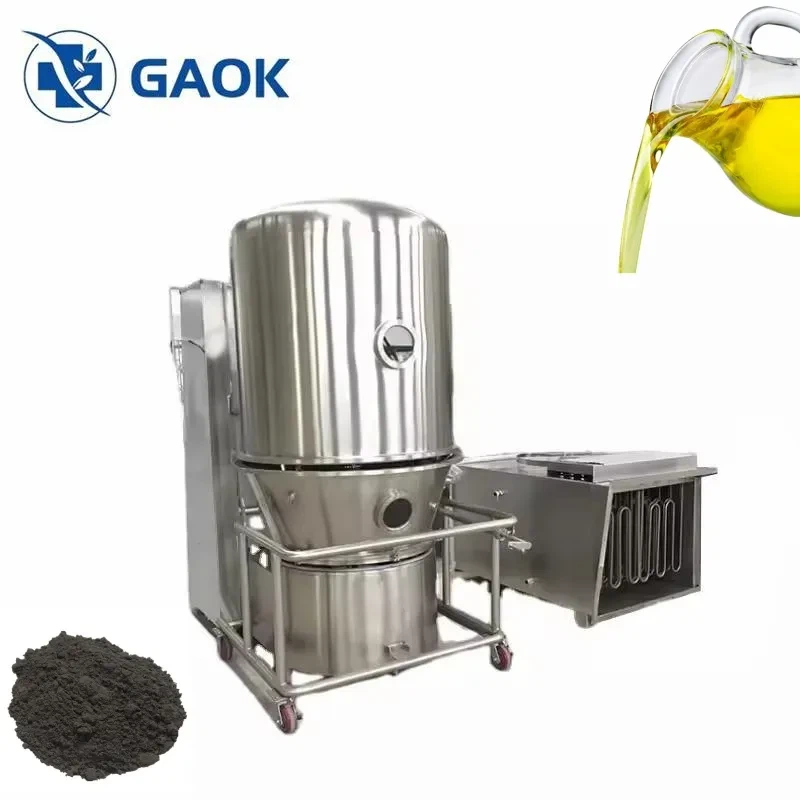

Anyang-Gaokang-MedicalBoiling Granulator
