Products Description
Wiped film distillation equipment is a type of molecular distillation equipment made of stainless steel, featuring high corrosion resistance and high temperature resistance.This system adopts the short path molecular distillation principle, heating the mixture to a high temperature to make each component evaporate separately and then recondense at a certain temperature, thus achieving the separation and purification of the mixture. The stainless steel short path molecular distillation system has high erintegration and better heat transfer efficiency, and can greatly increase productivity through the high-precision automatic feeding and discharge pump. lt is an idealchoice for pilot and industrial production equipment.

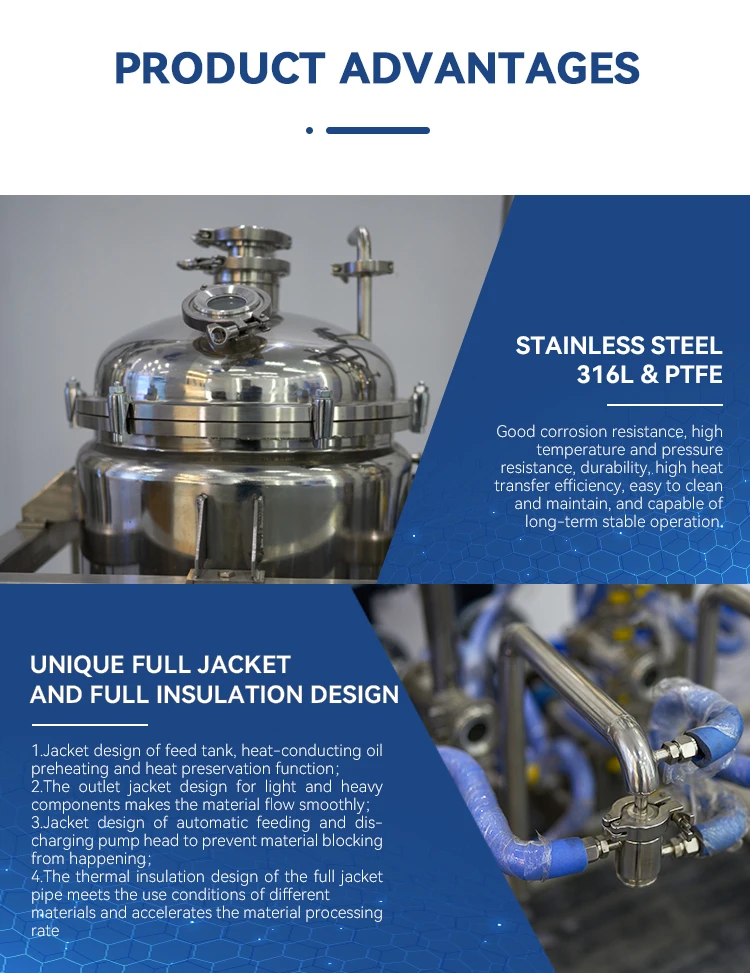

Products Advantage
Our Wiped Film Distillation Equipment has following Key Benefits：
- Gentle Processing – Operates under high vacuum, significantly lowering boiling points to prevent thermal degradation of sensitive compounds.
- High Separation Efficiency – Thin-film design and short-path configuration enable outstanding purity levels, even for close-boiling components.
- Handles Difficult Materials – Capable of processing viscous, fouling, or high molecular weight substances that would clog or burn in traditional stills.
- Scalable Design – Available in lab, pilot, and industrial sizes, allowing smooth process development and scale-up.
Product parameters
| Model | GK-0.5SS | GK-1SS | GK-5SS | |||||||
| Effective evaporation area(m2) | 0.5 | 1 | 5 | |||||||
| Condensing area(m2) | 1.7 | 2.7 | 8 | |||||||
| Rotate speed(r/min) | 30-350 | |||||||||
| Stainless steel material | 304/316 | |||||||||
| Feeding method | Gear pump automatic continuous feeding | |||||||||
| Discharge method | Gear pump automatic continuous discharge | |||||||||
| Operating Temperature(℃) | Within 350℃ | |||||||||
| Voltage | 220V/60Hz | |||||||||
| Other voltages can be customized | ||||||||||
application
The Wiped Film Distillation Equipment mianly using the following fields：
1.Pharmaceuticals & Nutraceuticals – Purification of APIs, cannabinoid distillation, concentration of omega-3s, and vitamin isolation.
2.Chemical & Petrochemical – Recovery of heat-sensitive monomers, refinement of silicone oils, and purification of specialty chemicals.
3.Essential Oils & Aromatics – Gentle stripping of terpenes, decolorization, and removal of pesticides or solvents.
4.Polymer & Resin Processing – Monomer recovery, devolatilization of polymers, and purification of epoxy resins.
