Essential oil distillation apparatus

Here at AnYang Gaokang Medical Co., Ltd, we specialize in delivering advanced Essential Oil Distillation Apparatus, specifically high-performance Short Path Molecular Distillation Systems. We provide comprehensive Turnkey Solutions, from initial consultation and process design (including PID and layout drawings) through installation, commissioning, and training. Our technology is engineered for efficiency and purity, particularly excelling in producing high-grade Omega-3 concentrates (EPA & DHA) and purifying sensitive essential oils.

We offer a scalable range of systems to meet diverse production needs:

• Model Range: GK-60, GK-80, GK-100, GK-150, GK-200, GK-230
• Core Evaporator: Diameters from 60mm (GK-60) to 230mm (GK-230).
• Effective Evaporation Area: Ranging from a compact 0.06 m² up to a substantial 0.5 m² (GK-230).
• Processing Flexibility: Feeding speeds scale with unit size, starting at 0.5-3 kg/h (GK-60) up to 8-30 kg/h (GK-230).
• Feed & Collection: Feed tank volumes (1L, 2L, 5L) and collection bottle volumes (1L, 2L, 3L, 5L) are optimized for each model.
• Robust Operation: Units operate at up to 450 RPM (GK-60 to GK-150) or 300 RPM (GK-200 & GK-230), powered by reliable 90W or 200W motors.
• Broad Thermal Range: Process temperatures from a chilling -90°C up to 220°C under high vacuum.
• Standard Power: 220V/50Hz (Custom voltage available).

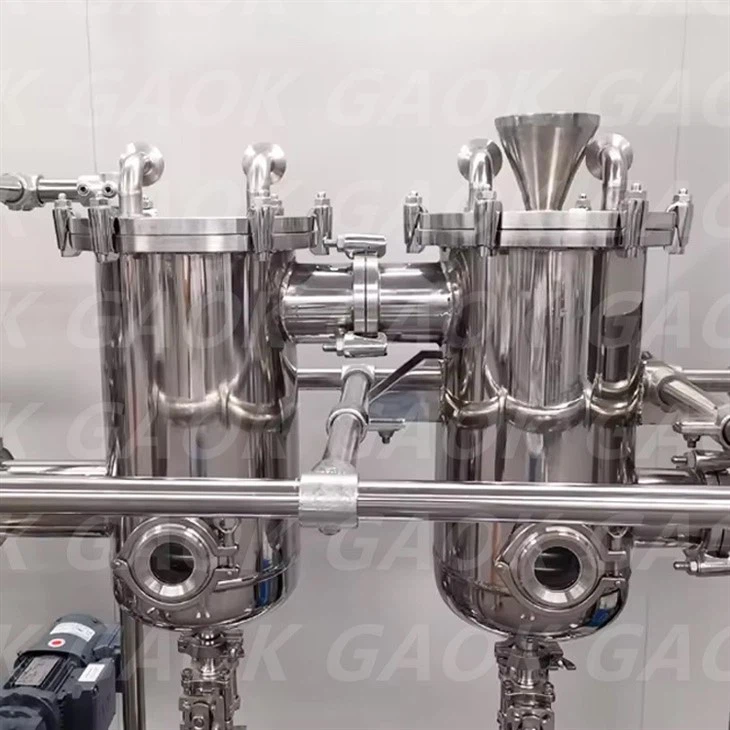

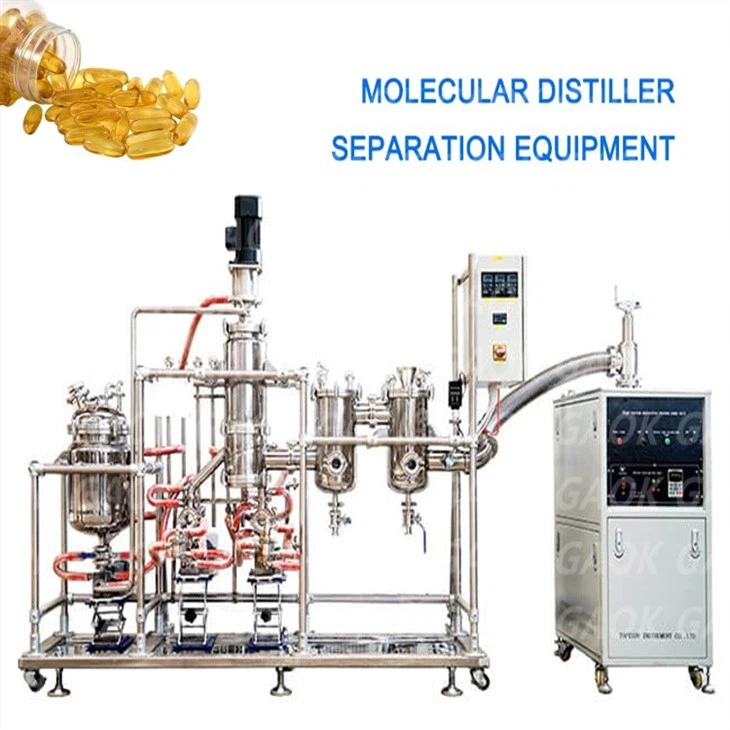

Our Essential Oil Distillation Apparatus utilizes Short Path Molecular Distillation, a critical technology operating under high vacuum. This minimizes the distance vapor travels before condensing, offering significant advantages:

• Minimal Loss & Immediate Condensation: Virtually no vapor hold-up on surfaces; immediate transition from vapor to liquid state on the condenser
• Optimized Liquid Phase: We design for minimal liquid layer thickness and strong flow, ensuring efficient molecule diffusion to the evaporation surface – a key factor controlling distillation speed.
• Precise Thermal Control: Evaporation rate increases with temperature, but we prioritize the thermal stability of your valuable compounds. Our systems allow you to find the optimal, economical temperature for maximum separation efficiency without degradation.
• Unobstructed Vapor Path: Our high vacuum design drastically reduces residual gas molecules between evaporation and condensation surfaces. This minimizes molecular collisions, ensuring molecules travel directly and efficiently to the condenser.
• Effective Condensation: A significant temperature differential (typically 70-100°C) combined with our precisely engineered, smooth condenser surfaces guarantees rapid and complete condensation of the purified distillate.

Molecular distillation is indispensable for purifying heat-sensitive, high-boiling-point, or high molecular weight compounds where traditional methods fail. Our systems are proven in demanding applications:

• Nutraceuticals & Fish Oils: Producing high-purity, concentrated Omega-3 (EPA & DHA) from crude fish oil, removing contaminants, and achieving pharmaceutical-grade standards.
• Essential Oils & Fragrances: Purifying delicate aromatic oils (citrus, floral, herbal) while preserving their volatile profiles and removing waxes, solvents, or pesticides.
• Fine & Specialty Chemicals: Refining monomers, polymer intermediates, plasticizers, and high-value synthetic compounds.
• Emerging Compounds: Purification of sensitive cannabinoids (CBD, CBG) and other botanical extracts.
• Chemical Manufacturing: Processes like the production of monoethylene glycol.

We deliver more than just equipment; we deliver solutions. Our commitment is to provide you with robust, efficient molecular distillation technology backed by comprehensive engineering support and expertise. From the compact GK-60 to the high-capacity GK-230, our systems are designed for reliability, purity, and scalability, empowering you to achieve superior product quality in the purification of essential oils, Omega-3s, and countless other high-value compounds.

Let us partner with you to distill excellence. Contact us today to discuss your specific purification challenges and discover how our molecular distillation technology can elevate your production.
