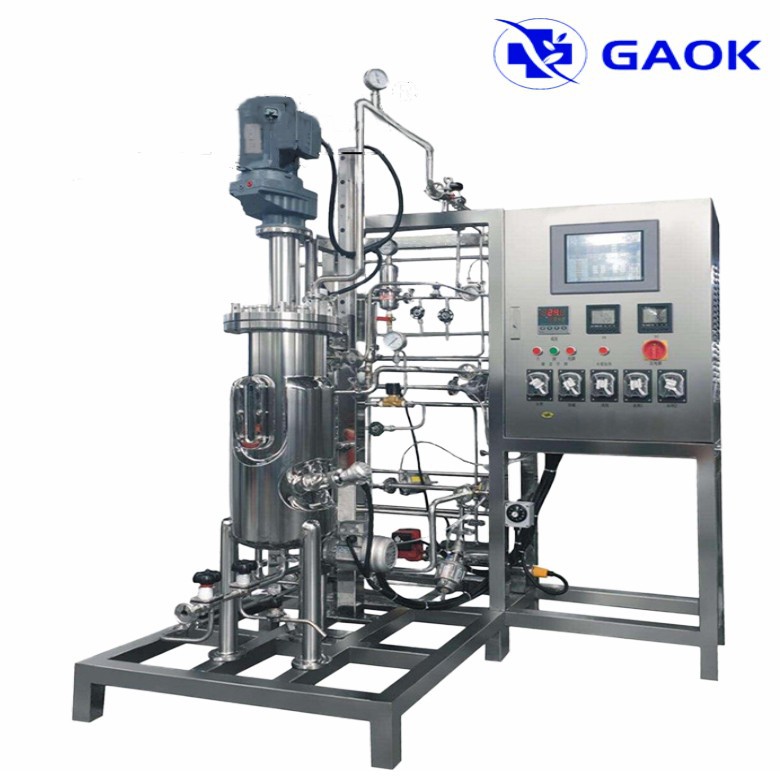

Commercial Fermenter

Our Commercial Fermenter from pilot-scale trials to full production. Every tank in this series is designed to deliver consistent results, batch after batch, with the automation and control you need to optimize your process.

Send Inquiry

Product Description

Whether you're running bacteria, yeast, or mammalian cells, our Commercial Fermenter is designed to keep parameters steady. The automated feeding and antifoam control help maintain optimal growth conditions, while the top- or bottom-mounted stirring options let you match the agitation to your culture's shear sensitivity. The lid-lift system on vessels up to 500L makes assembly and cleaning easier, and the zero-dead-zone harvest valve ensures maximum product recovery.

Multistage Combined Tank Equipmentpng

Product parameters

Model	GK-10L	GK-30L	GK-50L	GK-100L
Volume(L)	10	30	50	100
Temperature control way	Jacketed for heating or cooling, external heat insulation layer
Jacket volume(L)	3.8	8	15	20
Constant pressure funnel (L)	1	1	1	2
Material	stainless steel 316+304
Sealing form	Mechanical Seal
Speed control mode	Frequency control
Motor power(W)	200	200	200	200
Speed range(rpm)	460	460	460	460
Jacket pressure (Mpa)	≤0.3
Reactor pressure (Mpa)	-0.1~+0.1
Working temperature range	-80~+200
Voltage	220V 1P
